Magnetic Clutch Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in Fig 1 .

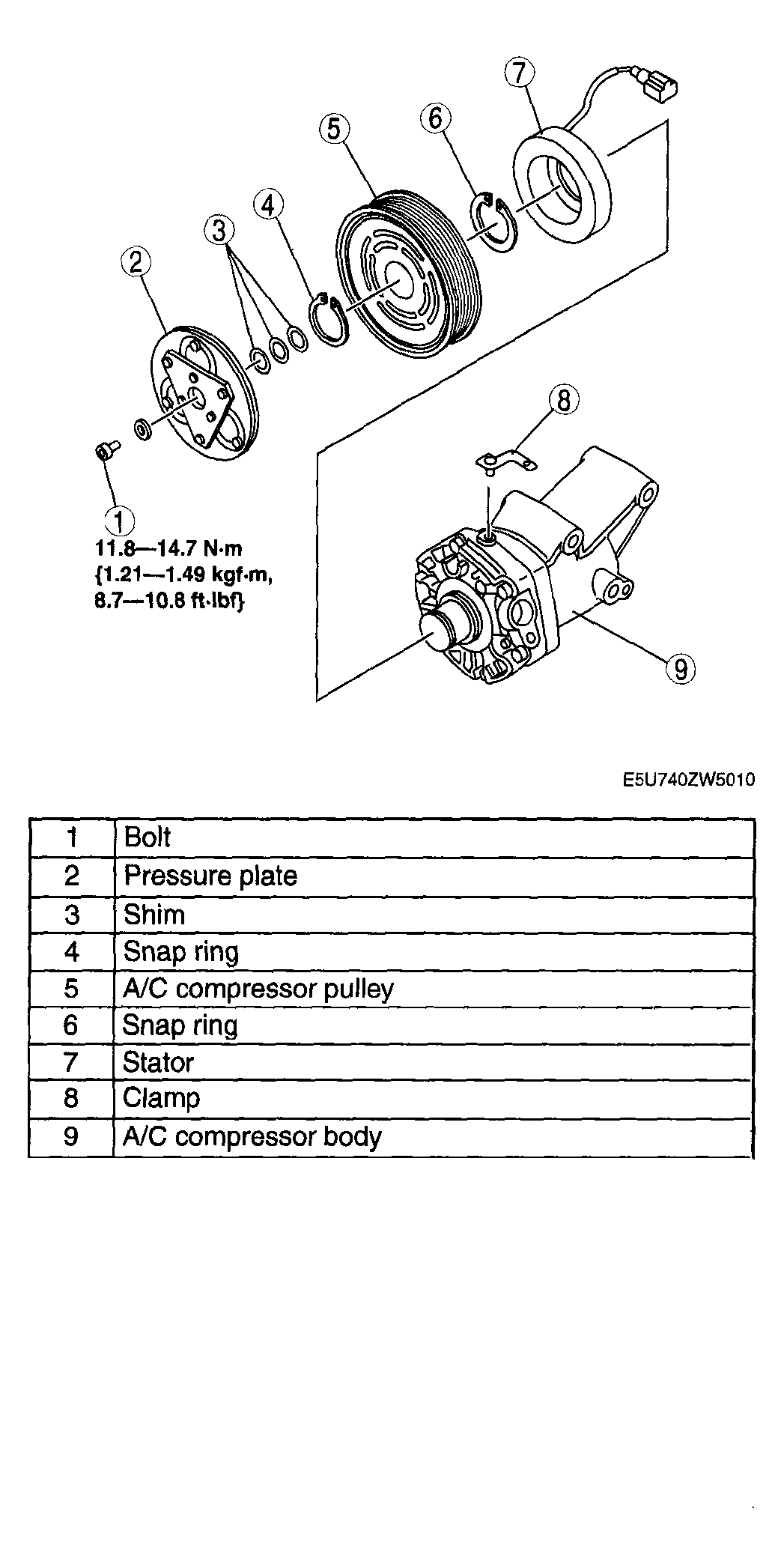

    Fig 1: Magnetic Clutch Replacement Components With Torque Specifications
    G04318841Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
  3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT  .)
