A/C Compressor Removal/Installation [LF, L3]: Notes
WARNING: This page is about a different car, the 2007 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Discharge the refrigerant. (See REFRIGERANT CHARGING .)
- Remove the splash shield.
- Remove the A/C drive belt. (See DRIVE BELT REPLACEMENT [LF, L3] .) (See DRIVE BELT REMOVAL/INSTALLATION [L3 WITH TC] .)
- Detach the two wiring harness clamps.
- Disconnect the magnetic clutch connector.
- Remove the A/C compressor protector.
- Disconnect the cooler hose (LO) and cooler hose (HI). Do not allow remaining compressor oil in the refrigerant line to spill. (See
REFRIGERANT LINES REMOVAL/INSTALLATION [LF, L3] ).CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Remove the compressor protector.

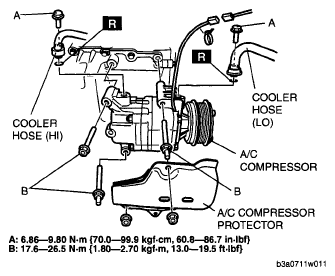

- Remove in the order indicated in the table. Do not allow remaining compressor oil in the A/C compressor to spill.CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
