Transfer Component Disassembly: Notes

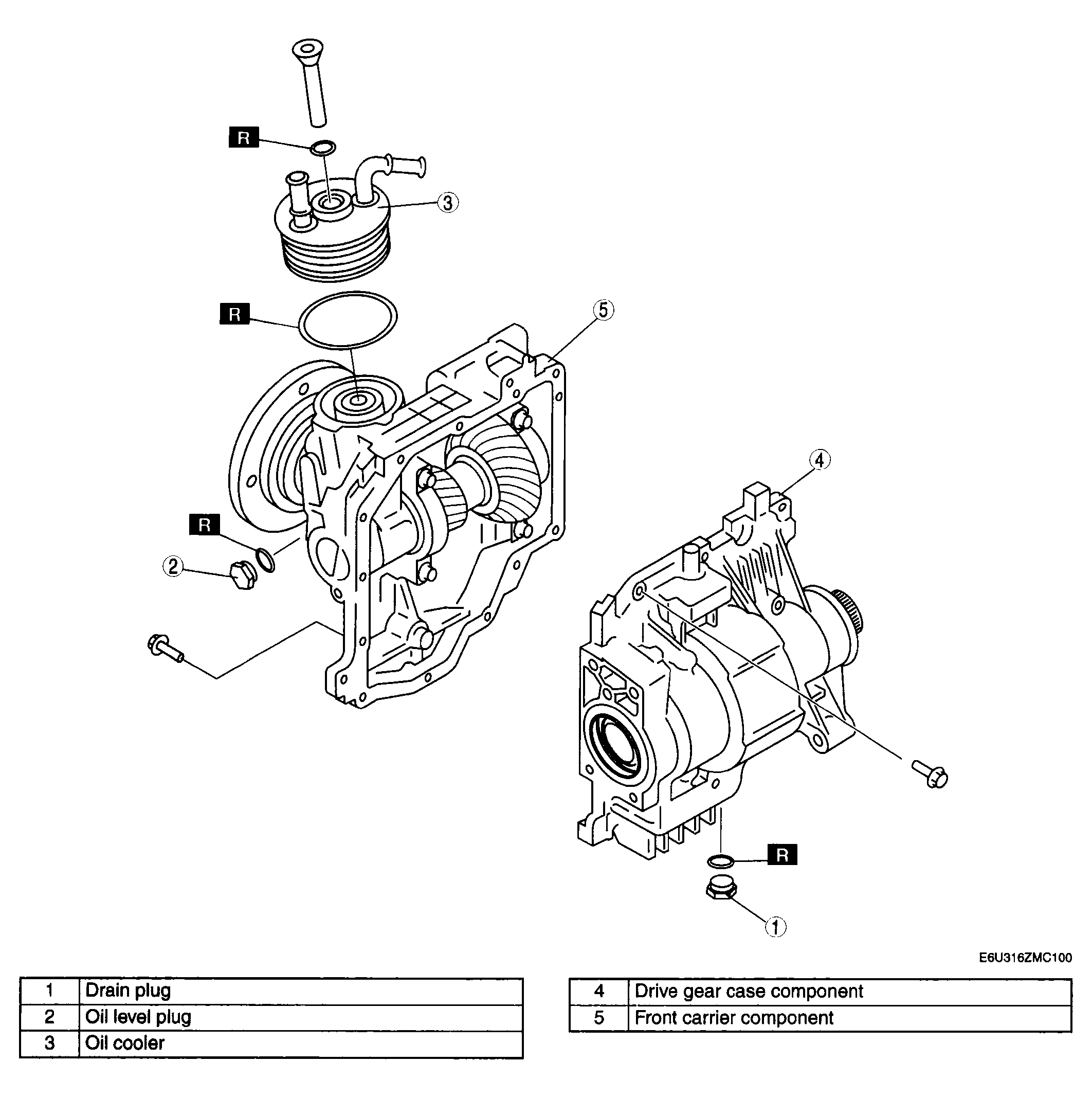

Fig 1: Transfer Component

G04330782

Courtesy of MAZDA MOTORS CORP.
