Monitoring System and Control System Device Relationship Chart

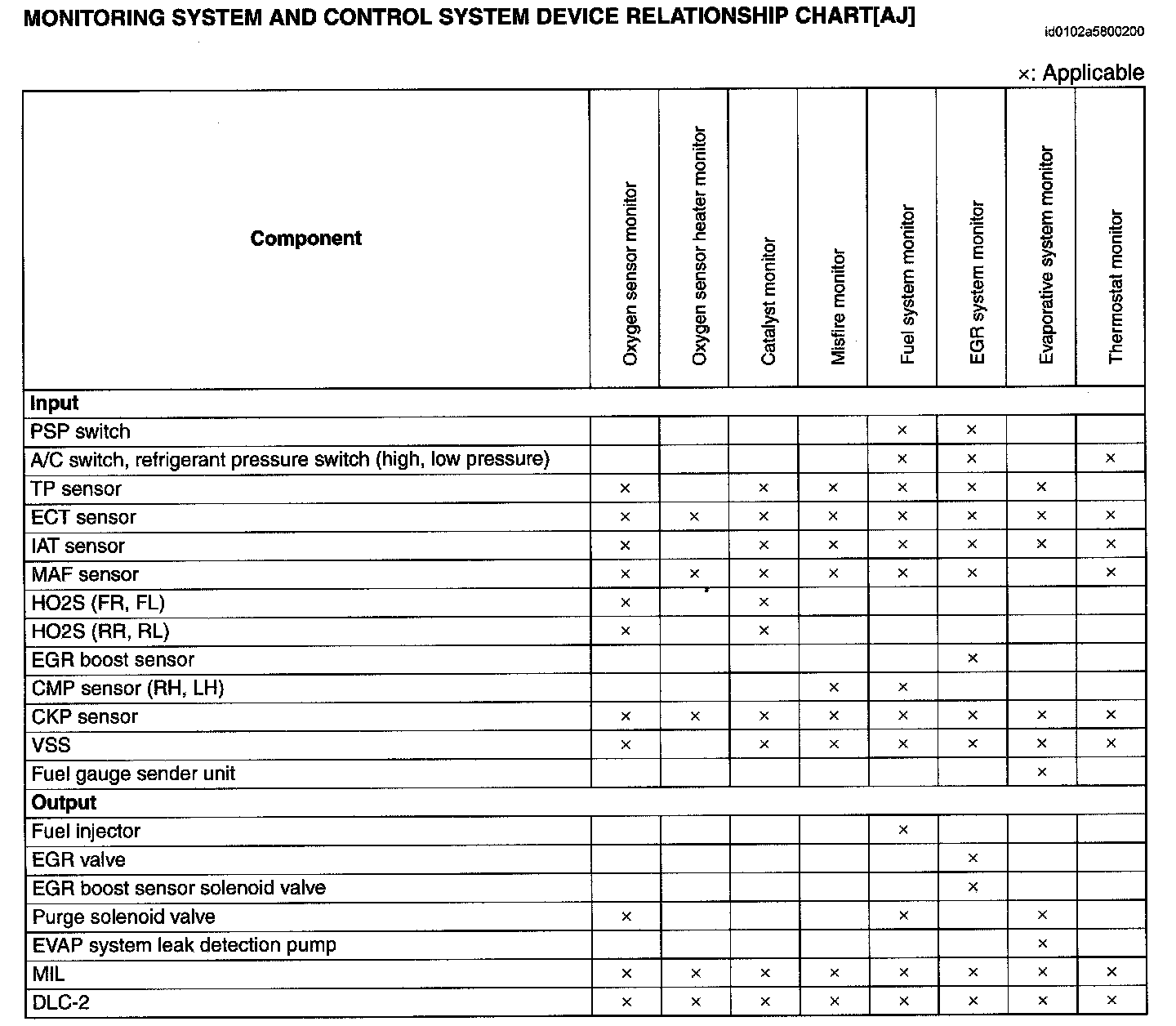

Monitoring System And Control System Device Relationship Chart[AJ]:

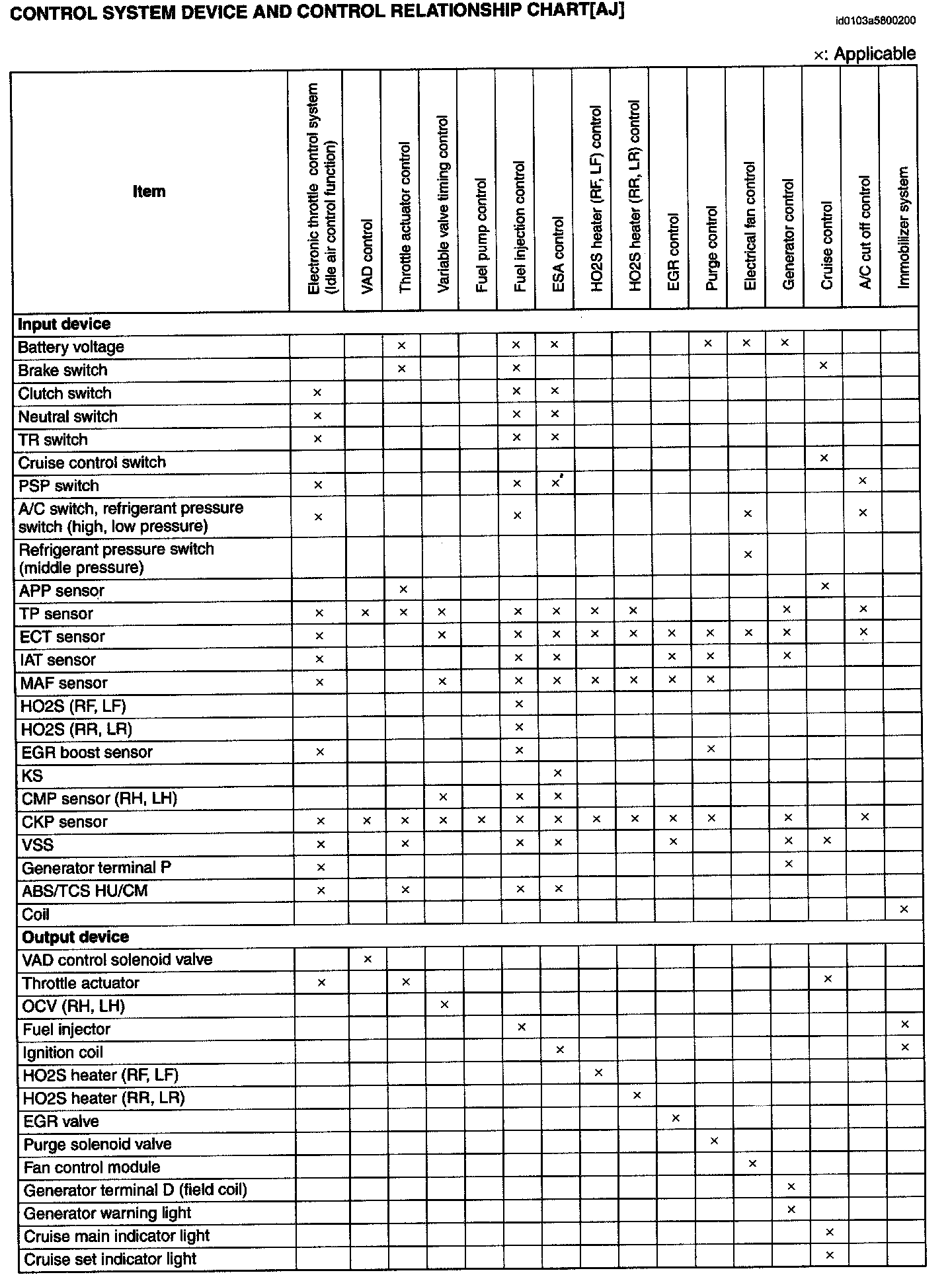

Control System Device And Control Relationship Chart[AJ] Part 1:



Control System Device And Control Relationship Chart[AJ] Part 2:
