Primary Shaft Thrust Washer Assembly Note

Primary Shaft Thrust Washer Assembly Note

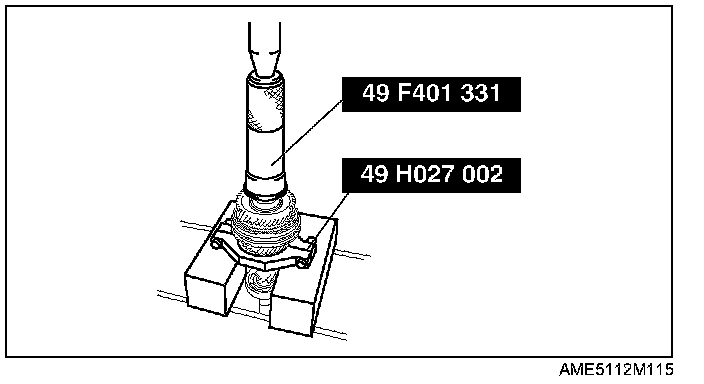

1. Install the primary shaft thrust washer using the SSTs.





2. Measure length C1 as shown in the figure.
^ If it is not within the specification, adjust it by selecting a proper thrust washer from below.
^ Select only one thrust washer.

Specification:
C1: 154.7 - 154.8 mm (6.091 - 6.094 in)

Primary shaft thrust washer size
