1ST/2ND Clutch Hub Set Assembly Note

1st/2nd Clutch Hub Set Assembly Note

Note: Align the synchronizer ring grooves with the synchronizer key during assembly.

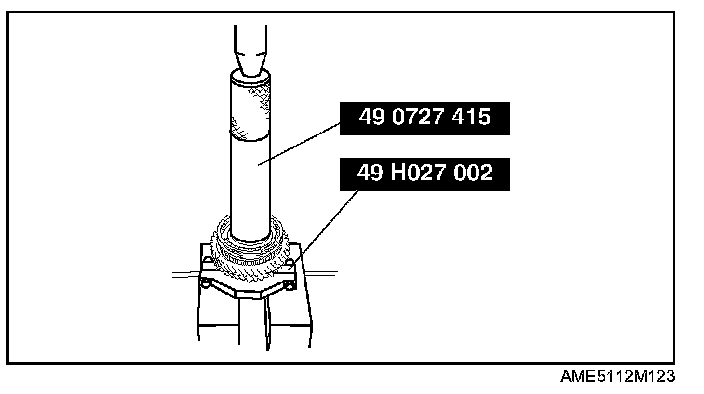

1. Install the 1st/2nd clutch hub set using the SSTs.
