Reverse Main Gear Assembly Note

Reverse Main Gear Assembly Note

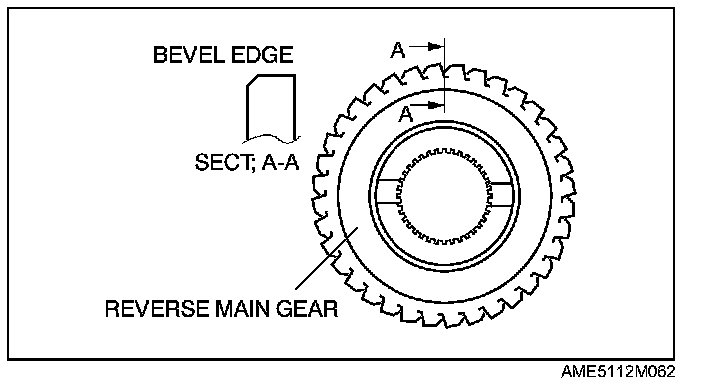

1. Place a new reverse main gear with the bevel edge facing toward the engine.

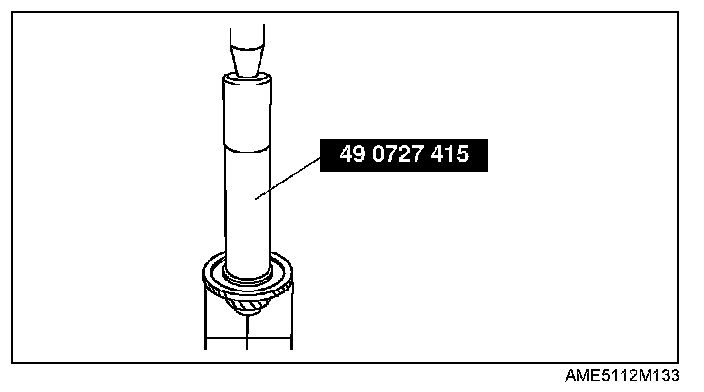

2. Install the reverse main gear using the SST.
