Engine - Coolant Temperature Sensor/Switch: Service and Repair

WATER TEMPERATURE SENDER UNIT REMOVAL / INSTALLATION

1. Disconnect the negative battery cable.
2. Drain the cooling system.

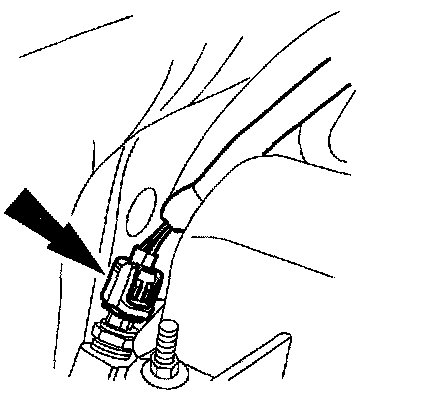

3. Disconnect the electrical connector.




4. Remove the engine coolant temperature sensor.

Note:
^ Coat the threads with pipe thread sealant.

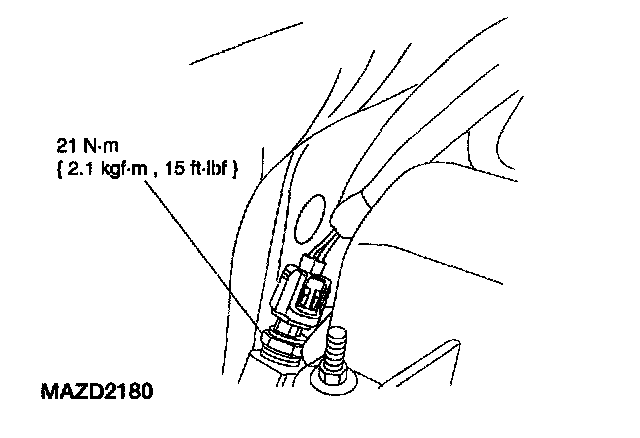

5. To install, reverse the removal procedure.
