Intake Manifold Removal / Installation - 2.3L: Notes

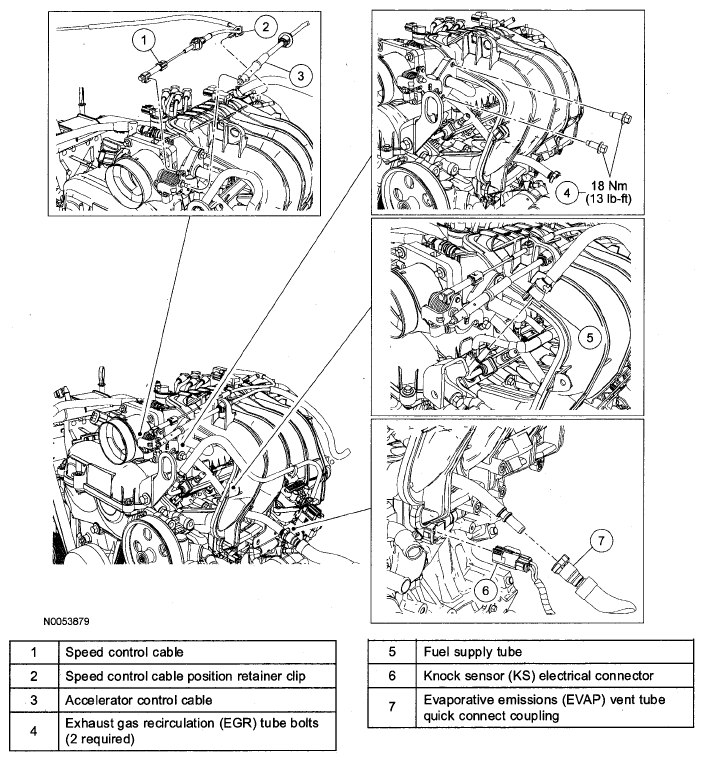

Fig 1: Removing/Installing Intake Manifold Components With Torque Specification (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

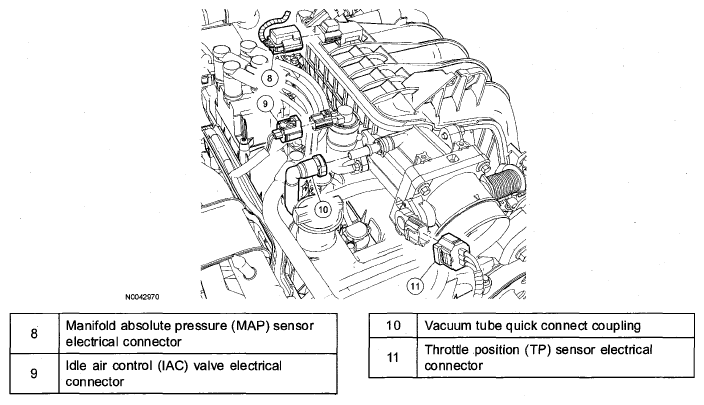

Fig 2: Removing/Installing Intake Manifold Components With Torque Specification (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

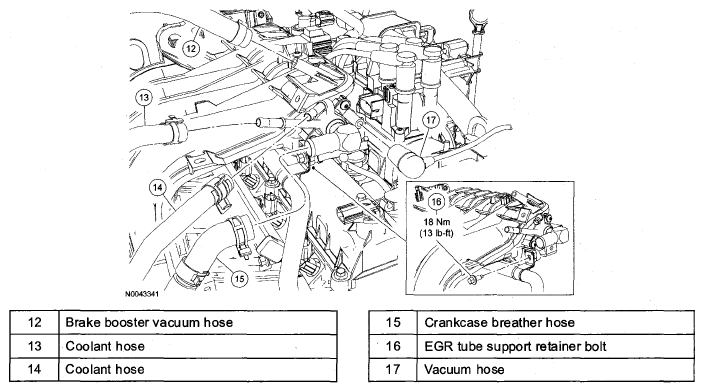

Fig 3: Removing/Installing Intake Manifold Components With Torque Specification (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

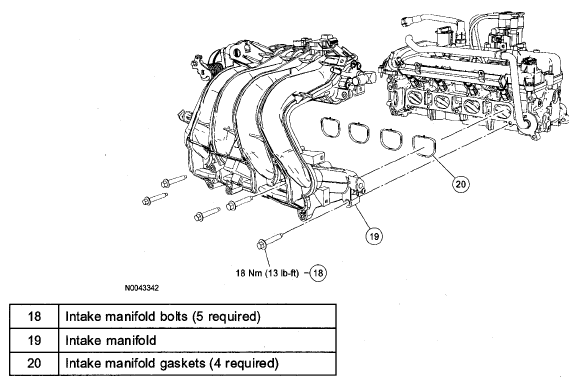

Fig 4: Removing/Installing Intake Manifold Components With Torque Specification (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
