Instrument Cluster: Notes

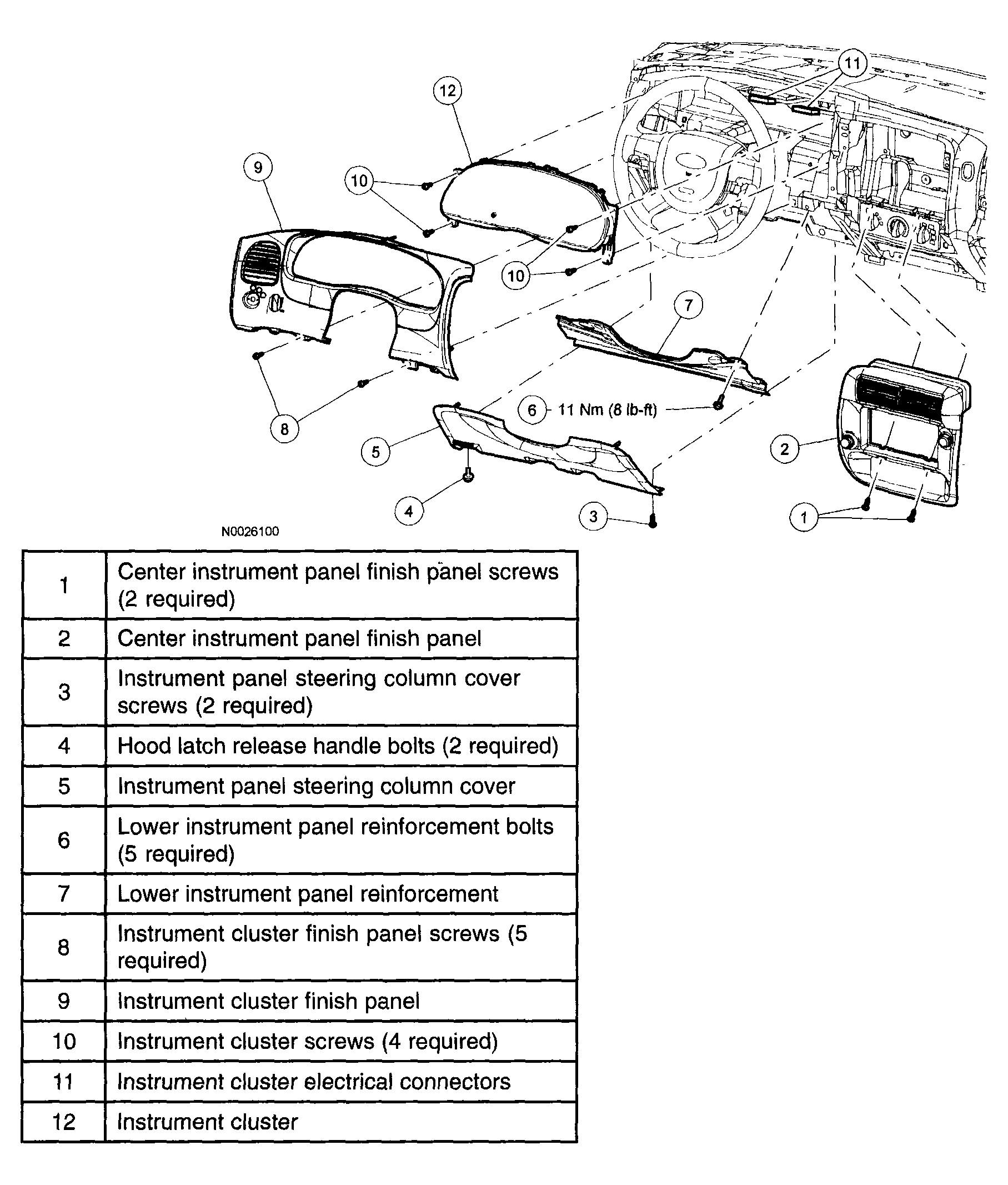

Fig 1: Exploded View Of Instrument Cluster With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
