Instrument Panel - Component View

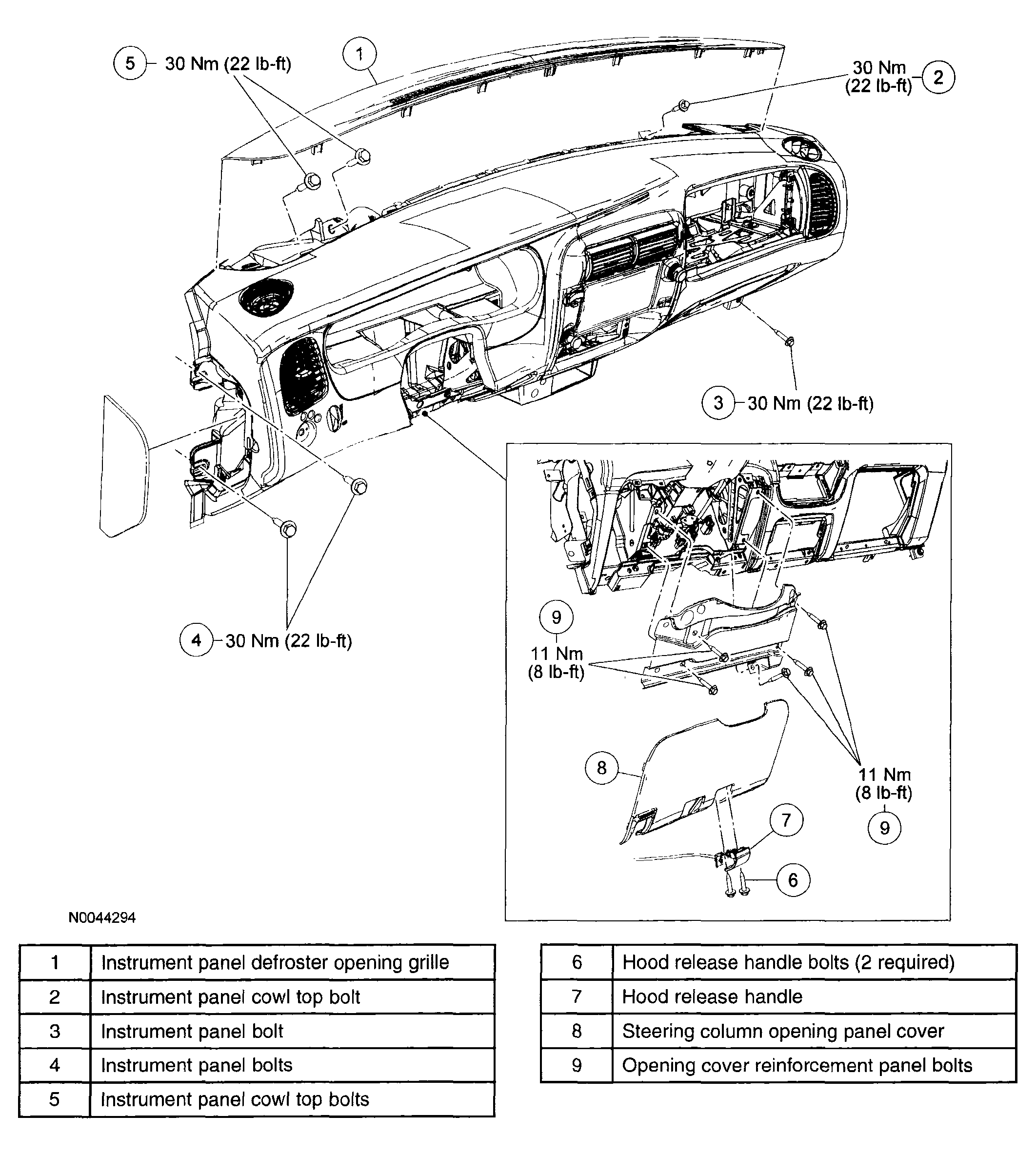

Fig 1: Component View - Instrument Panel With Torque Specifications
G04310466Courtesy of MAZDA MOTORS CORP.
