Seat Backrest Front - 60 Percent Bench Disassembly / Assembly: Notes

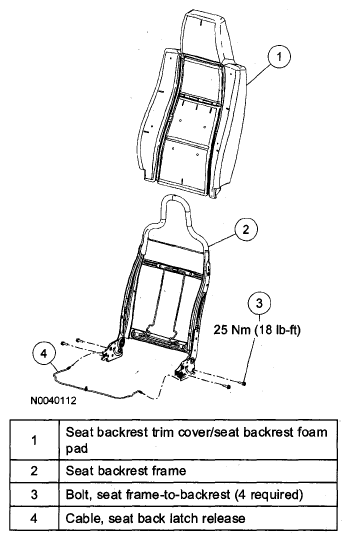

Fig 1: Front Seat Backrest Replacement Components With Torque Specifications - 60 Percent Bench
G04931149
