Starter Motor Removal / Installation - 4.0L: Notes

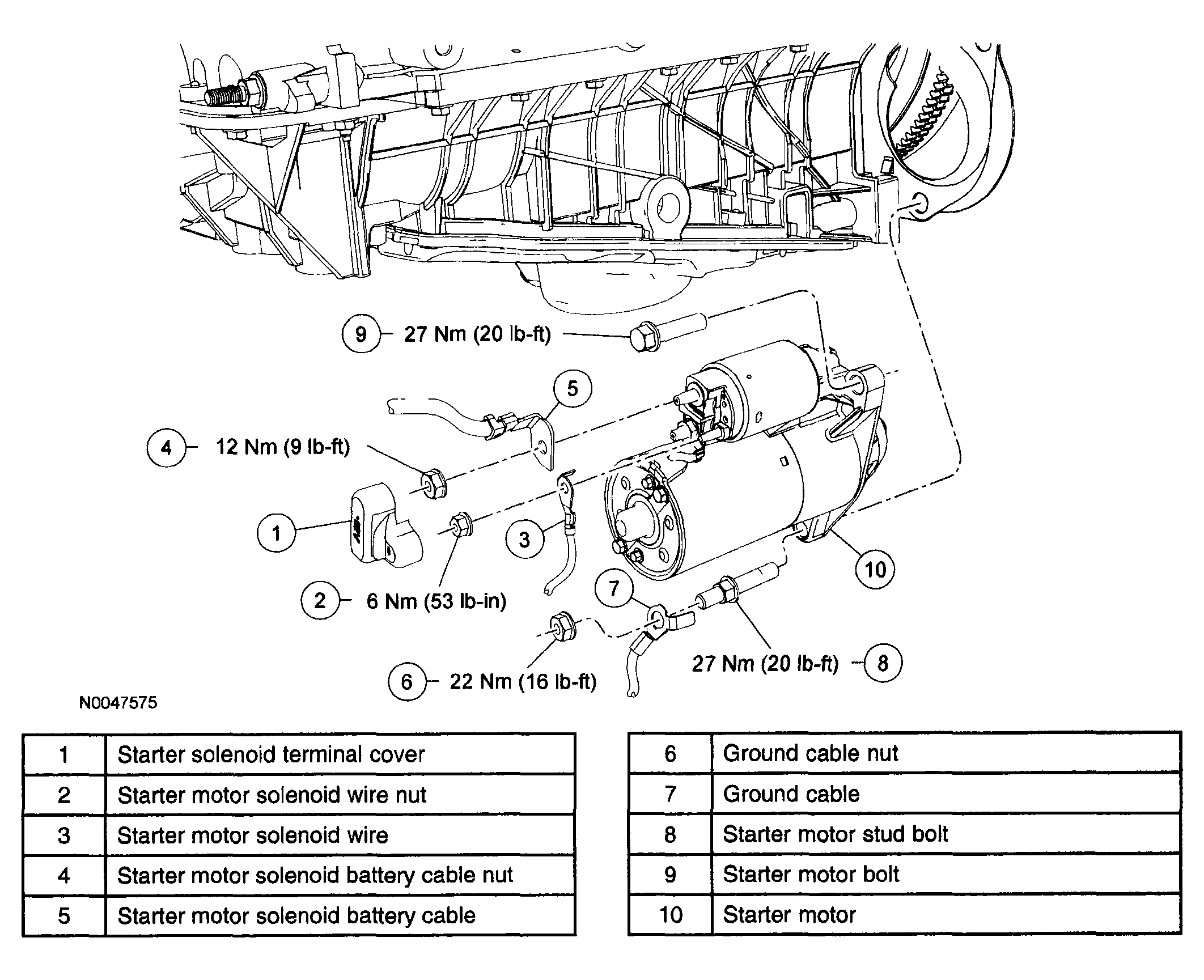

Fig 1: Starter Motor With Torque Specifications -- 4.0L
G04308320Courtesy of MAZDA MOTORS CORP.
