Safety Belt Retractor - Front 4-Door, Cab Plus: Notes

NOTE:
  • Shown with rear door interior trim panel removed for clarity.

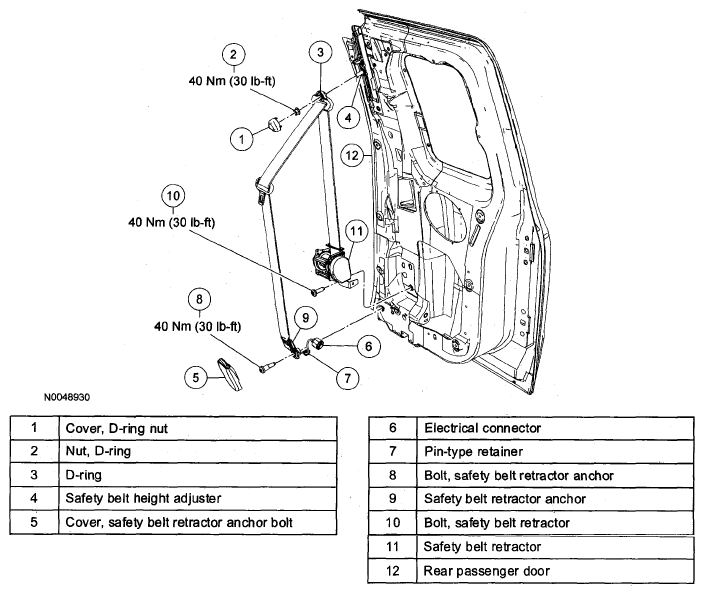

Fig 1: Safety Belt Retractor Replacement Components - Front 4-Door, Cab Plus With Torque Specifications
G04930900
