Cruise Control Servo Removal / Installation

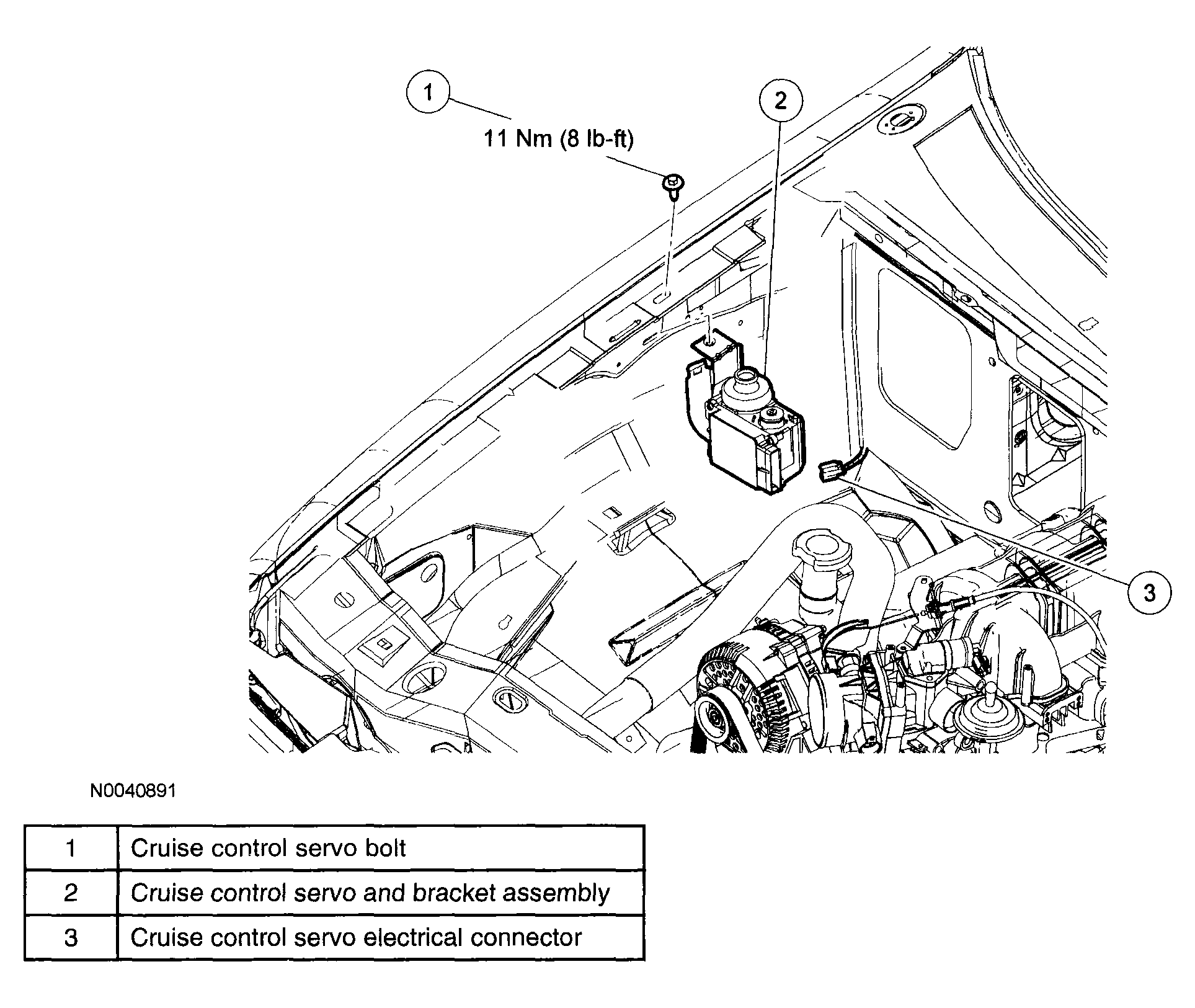

Fig 1: Removing/Installing Cruise Control Servo With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. See BATTERY DISCONNECT , .

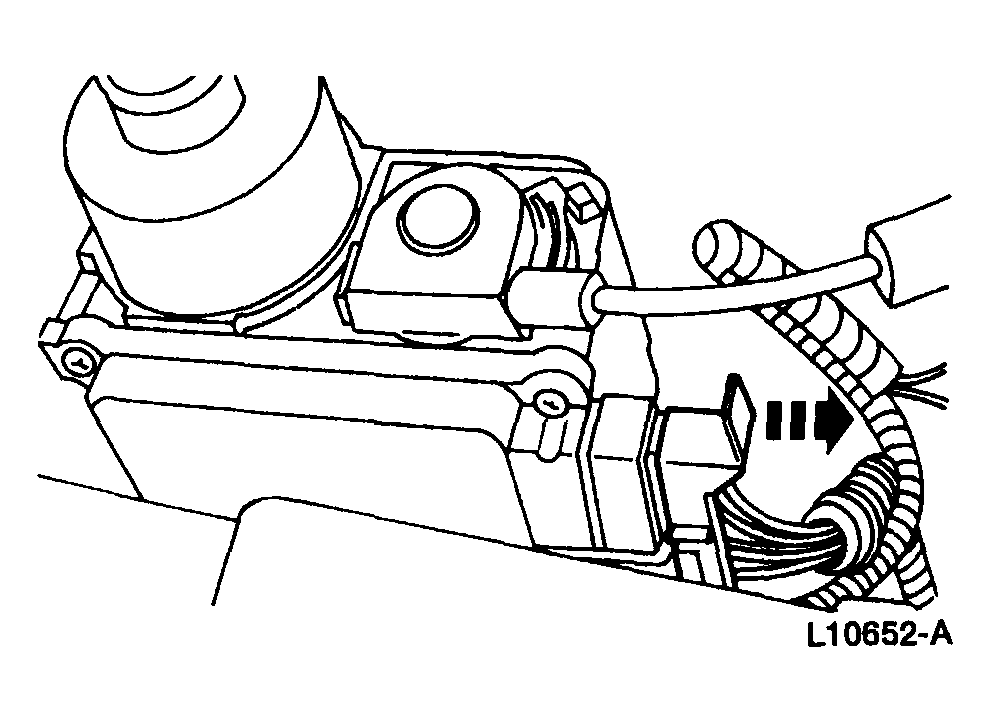

Disconnect the cruise control servo electrical connector.
Remove the cruise control cable cap from the cruise control servo.

Fig 2: Removing Cruise Control Cable Cap From Cruise Control Servo
Courtesy of MAZDA MOTORS CORP.

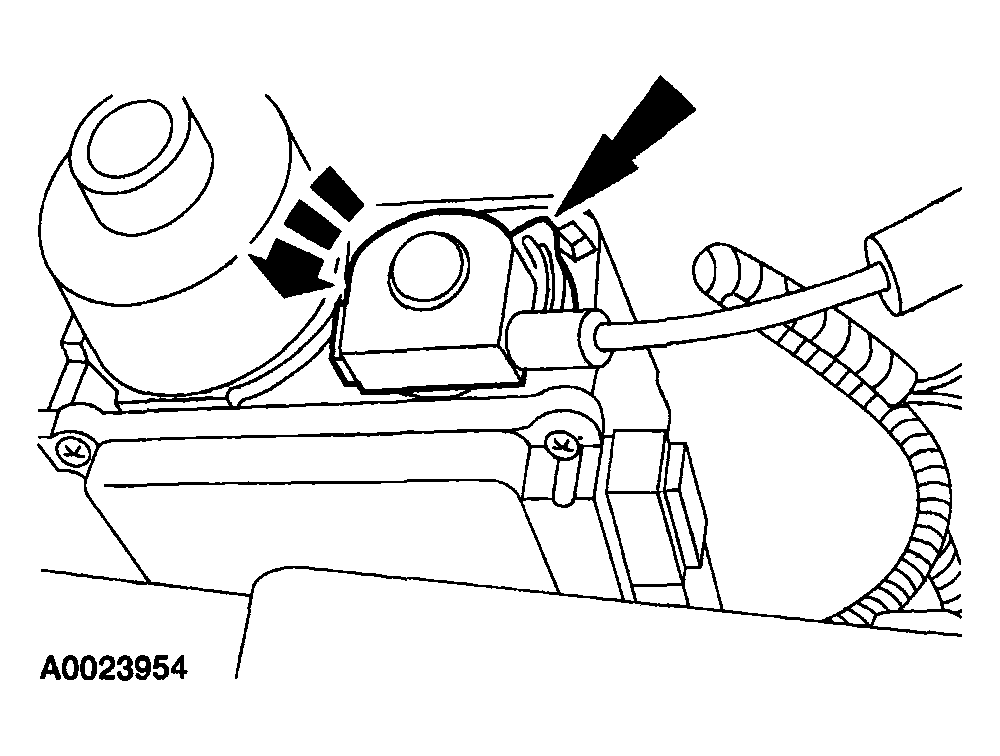

Fig 3: Push In Locking Arm On Cruise Control Cable Cap
Courtesy of MAZDA MOTORS CORP.
- Push in the locking arm on the cruise control cable cap then rotate the cap counterclockwise.
Remove the cruise control cable.
1. Press the spring retainer.
2. Slide the core wire end out of the cruise control servo pulley and remove the cruise control cable.
Fig 4: Pressing Spring Retainer
Courtesy of MAZDA MOTORS CORP.
Remove the cruise control servo bracket bolt and remove the servo.

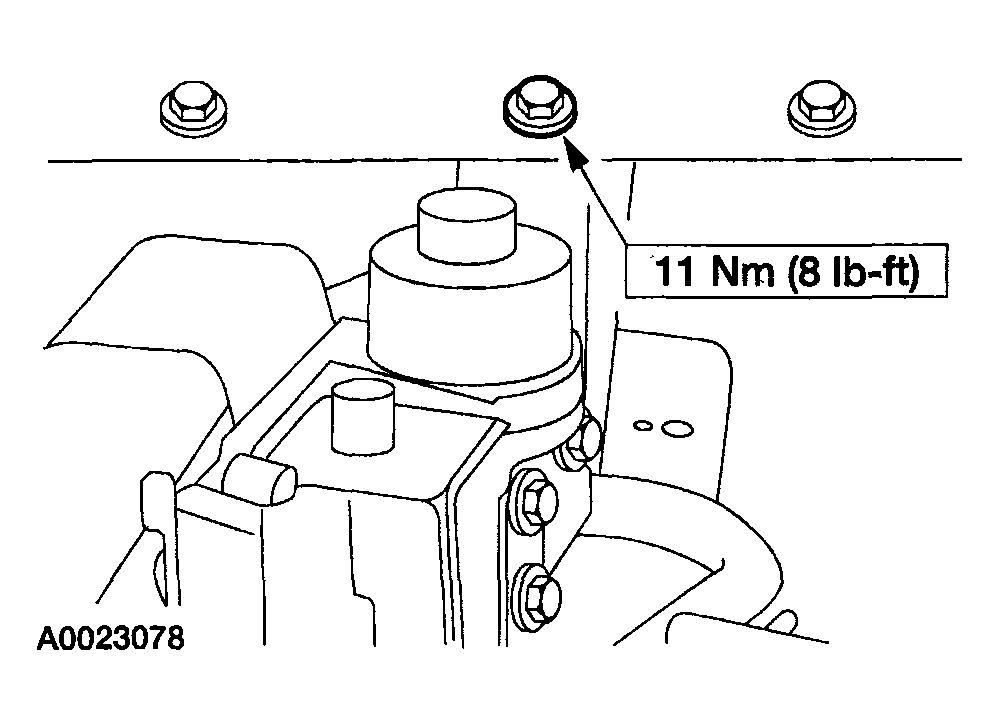

Fig 5: Removing/Installing Cruise Control Servo Bracket Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and separate the cruise control servo bracket from the cruise control servo.

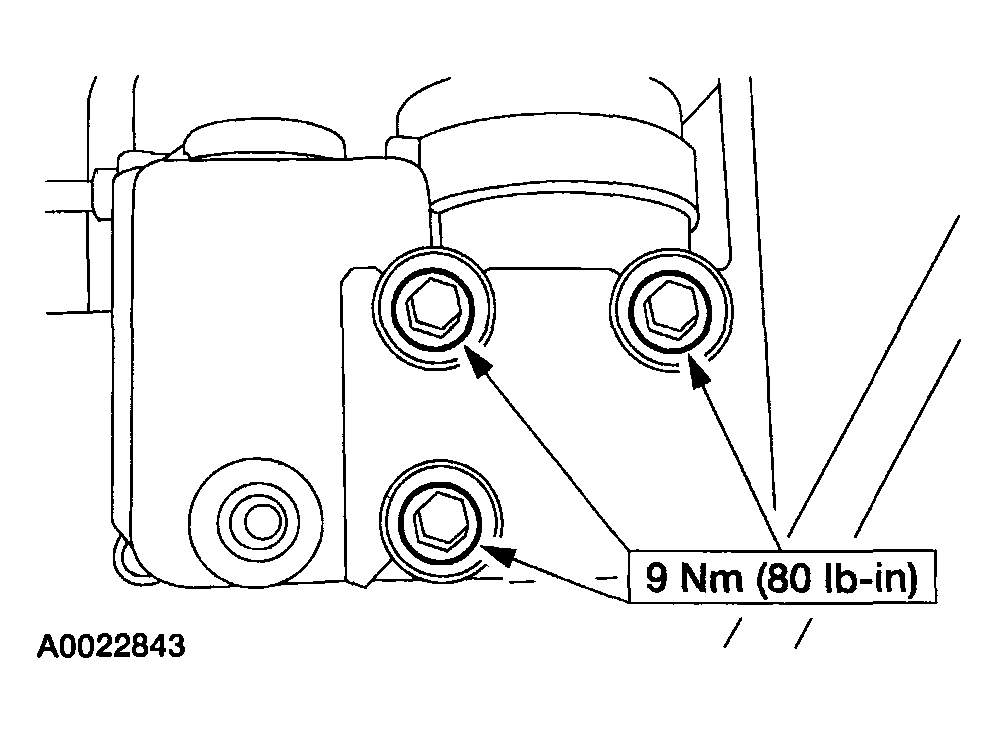

Fig 6: Removing/Installing Cruise Control Servo Bracket With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Make sure the rubber seal is fully seated onto the cruise control cable cap.
To install, reverse the removal procedure.
