Fuel-Filler Lid And Opener Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the fuel-filler lid opener, remove the left side trunk side trim.
  2. To remove the fuel-filler lid opener cable, perform the following and partially peel back the floor covering.
    1. Remove the driver-side front seat.
    2. Remove the driver-side front scuff plate.
    3. Remove the driver-side rear scuff plate.
    4. Remove the driver-side B-pillar lower trim.
    5. Remove the driver-side tire house trim.
    6. Remove in the order indicated. See Fig 1.
    Fig 1: Removal Order Of Fuel-Filler Lid & Opener
    G01026838Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the fuel-filler lid.

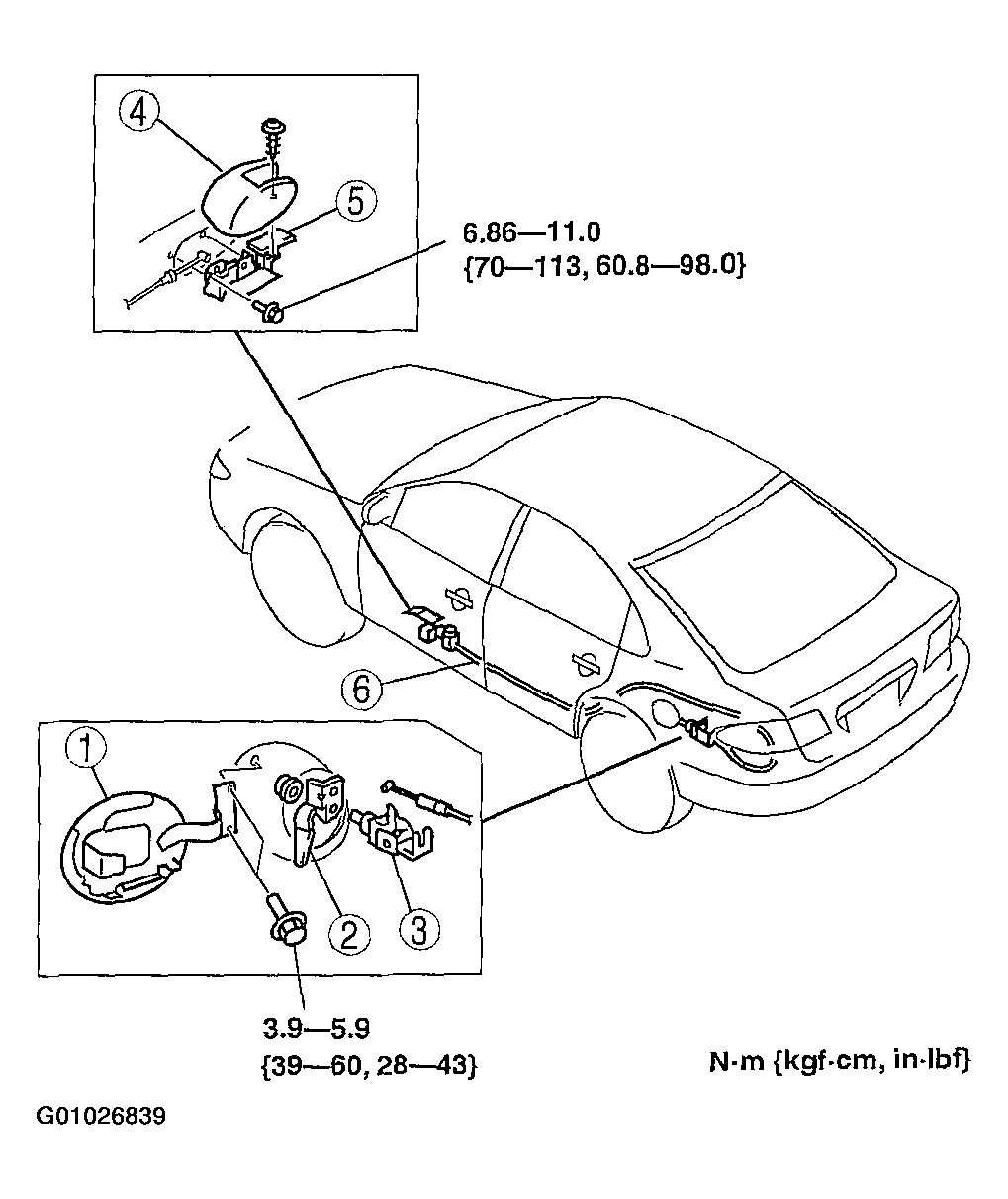

Fig 2: Removing/Installing Fuel-Filler Lid & Opener
G01026839Courtesy of MAZDA MOTORS CORP.
