Seat Warmer Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the seat cushion trim. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
While inspecting for continuity between the terminals A and B of the connector, use a dryer to warm the thermostat of the seat warmer unit on seat cushion.

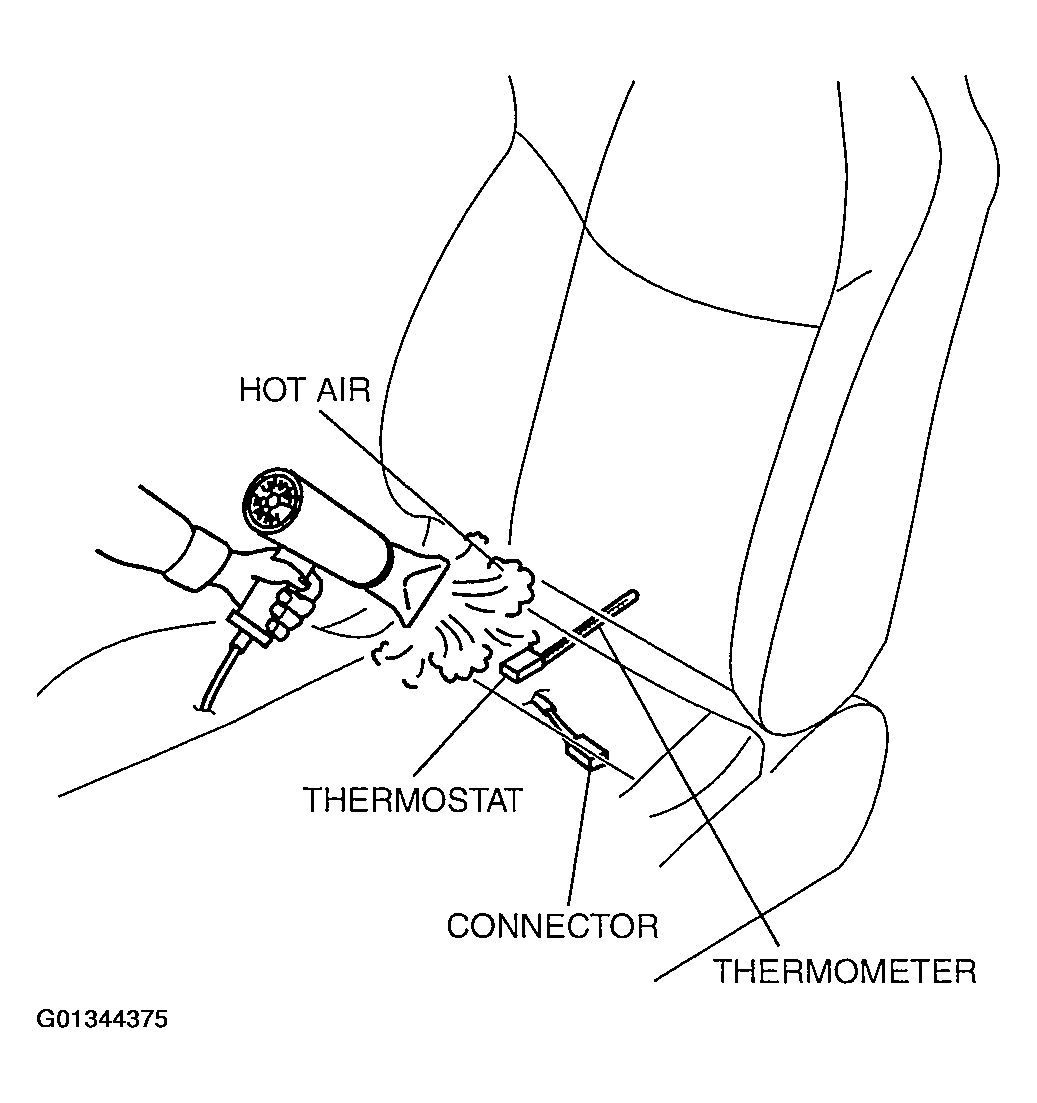

Fig 1: Using Dryer To Warm Thermostat Of Seat Warmer Unit On Seat Cushion
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between the seat warmer terminals is as indicated. See Fig 2 .

Fig 2: Verifying Continuity Between Seat Warmer Terminals
Courtesy of MAZDA MOTORS CORP.

If not as indicated, replace the seat warmer switch.

Fig 3: Inspecting Seat Warmer Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
