Coolant Temperature Sensor / Switch HVAC: Service and Repair

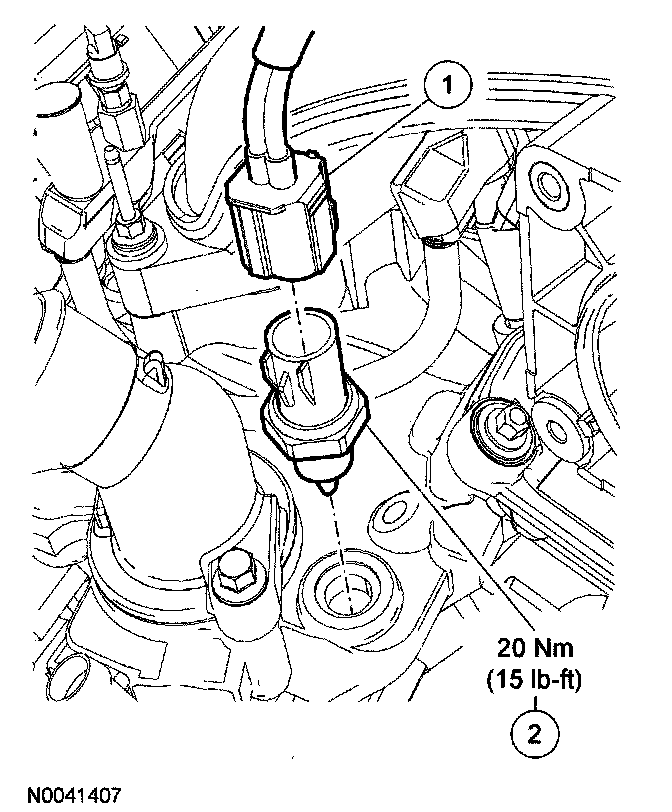

ENGINE COOLANT TEMPERATURE SENSOR REMOVAL / INSTALLATION - 3.0L







1. Disconnect battery.
2. Partially drain the cooling system. See ENGINE COOLANT REPLACEMENT - 3.0L.
3. Disconnect engine coolant temperature (ECT) sensor connector.
4. Remove the ECT sensor.

Tightening torque: 20 Nm {2.0 kgf-m, 15 ft-lbf}

5. To install, reverse the removal procedure.
