Drive Belt: Testing and Inspection

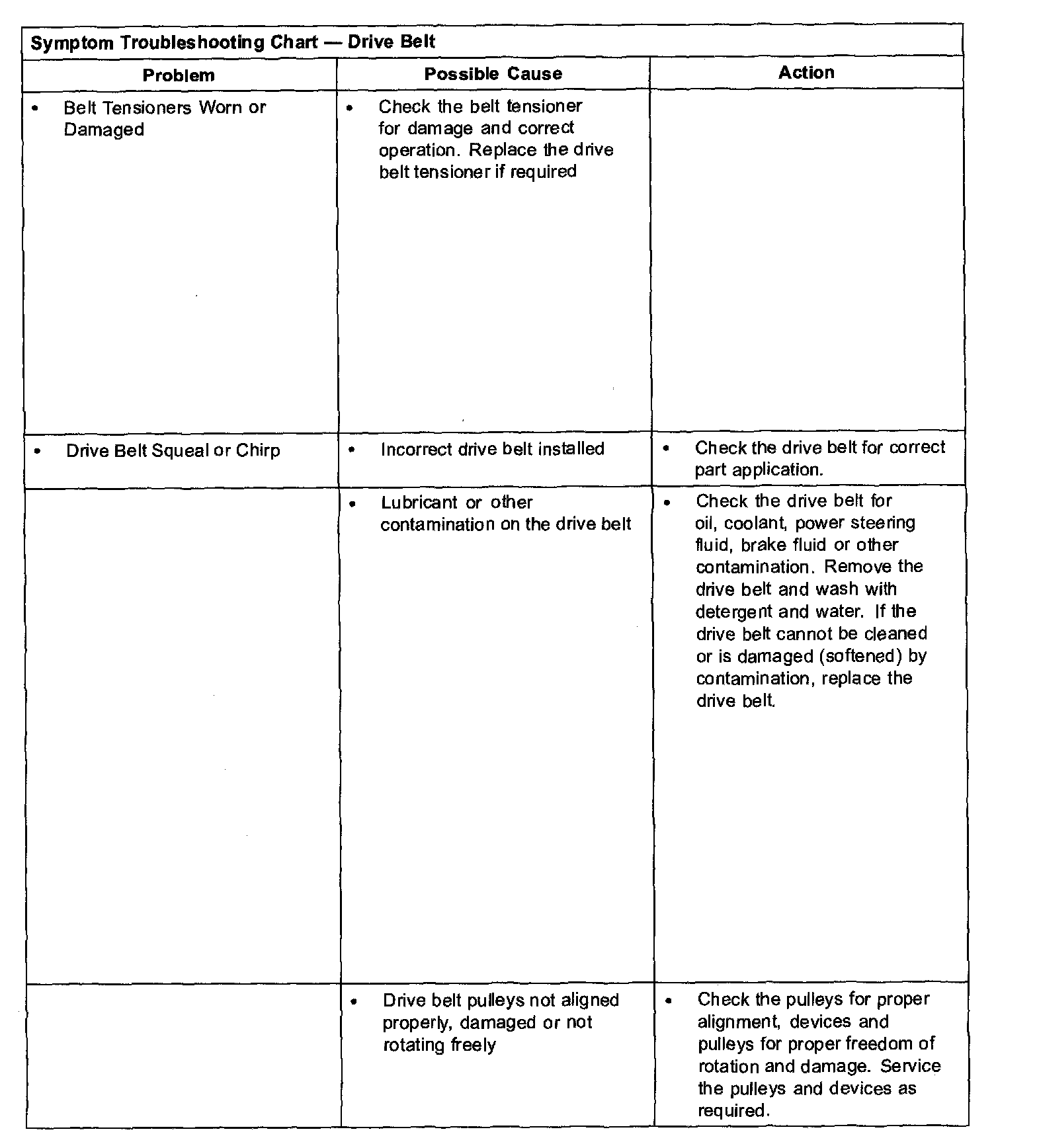

Symptom Troubleshooting Chart - Drive Belt (Part 1):

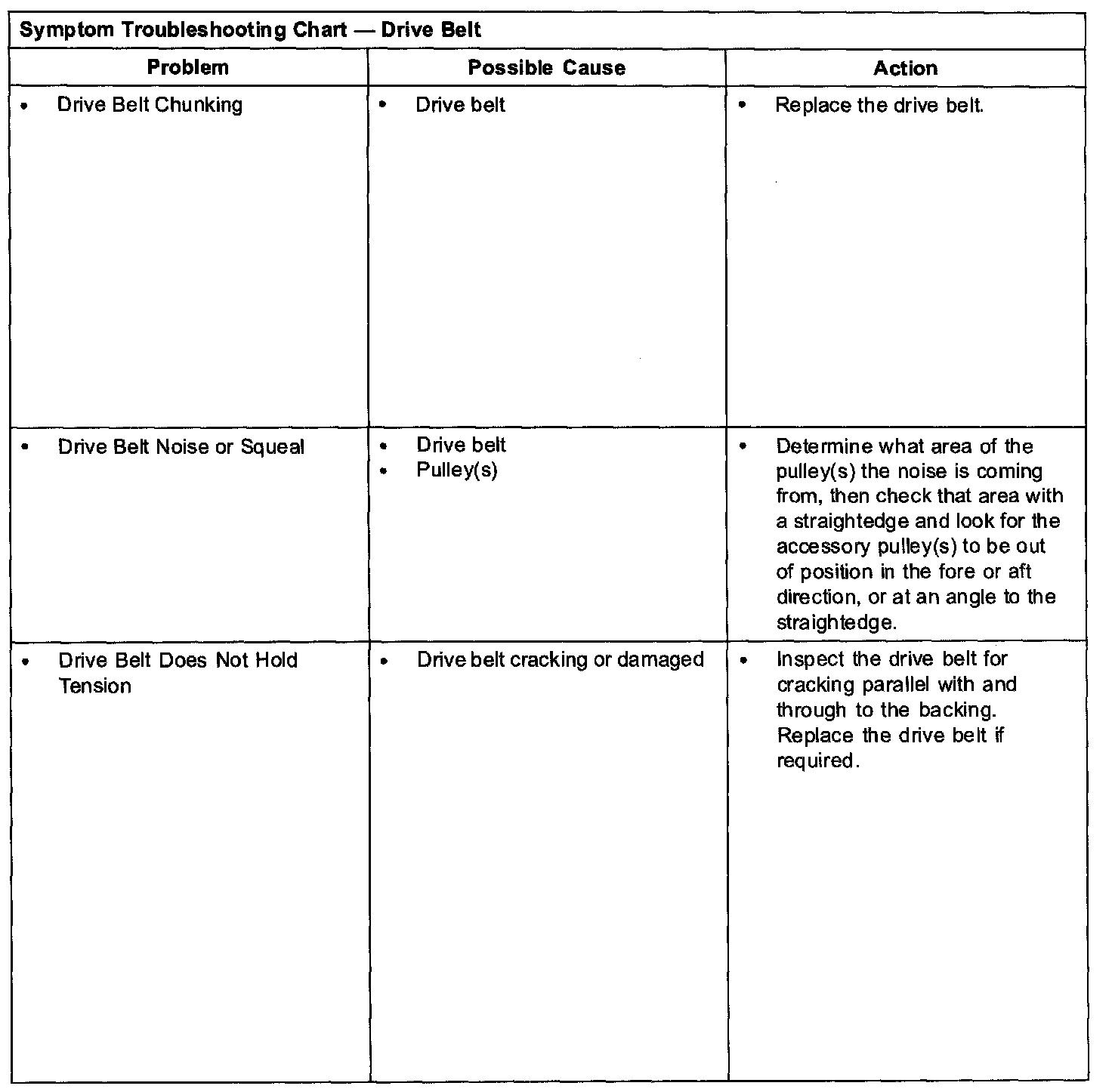

Symptom Troubleshooting Chart - Drive Belt (Part 2):



Symptom Troubleshooting Chart - Drive Belt (Part 3):
