Power Window Motor Connector End View (C524)

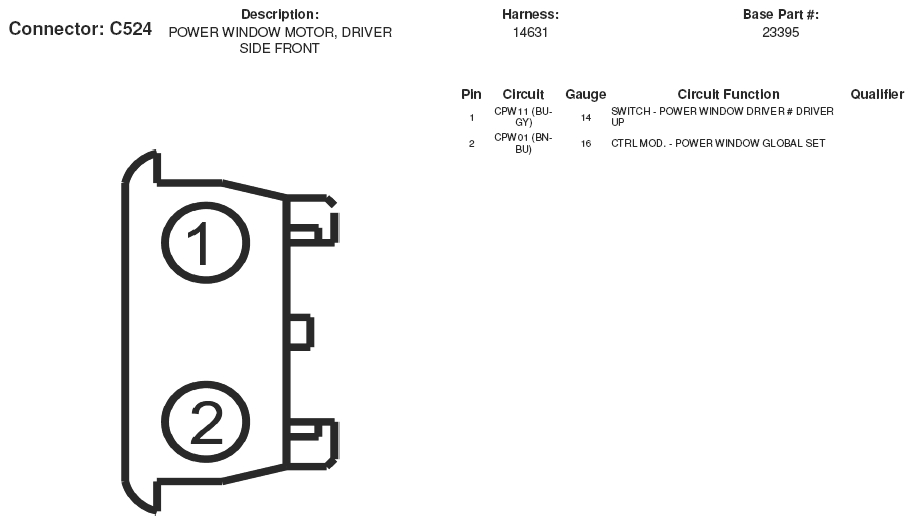

Fig 1: Power Window Motor Connector End View (C524)
G05169252Courtesy of FORD MOTOR CO.
