Symptom Related Diagnostic Procedures

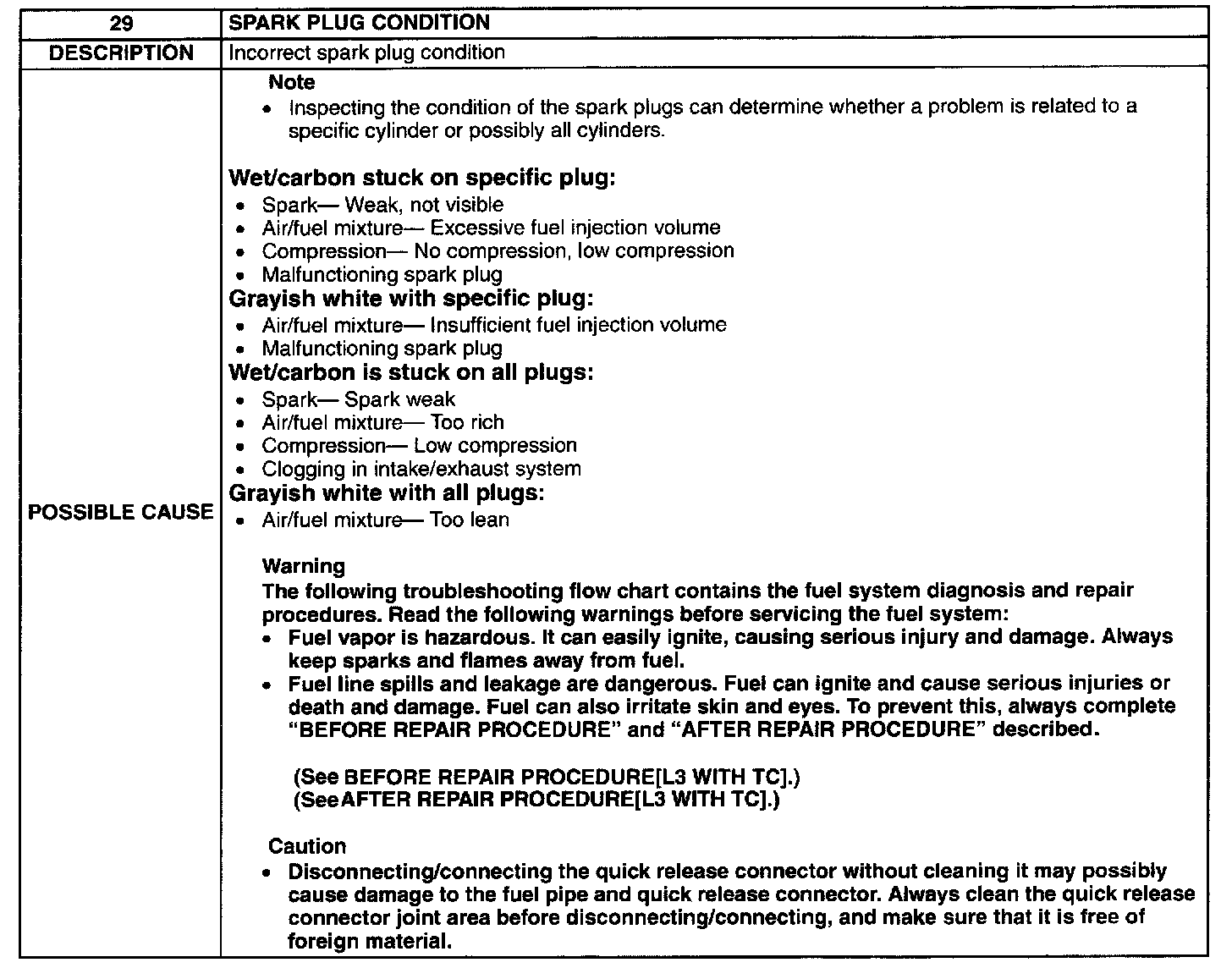

Description/Possible Cause:



Step 1-Step 2:

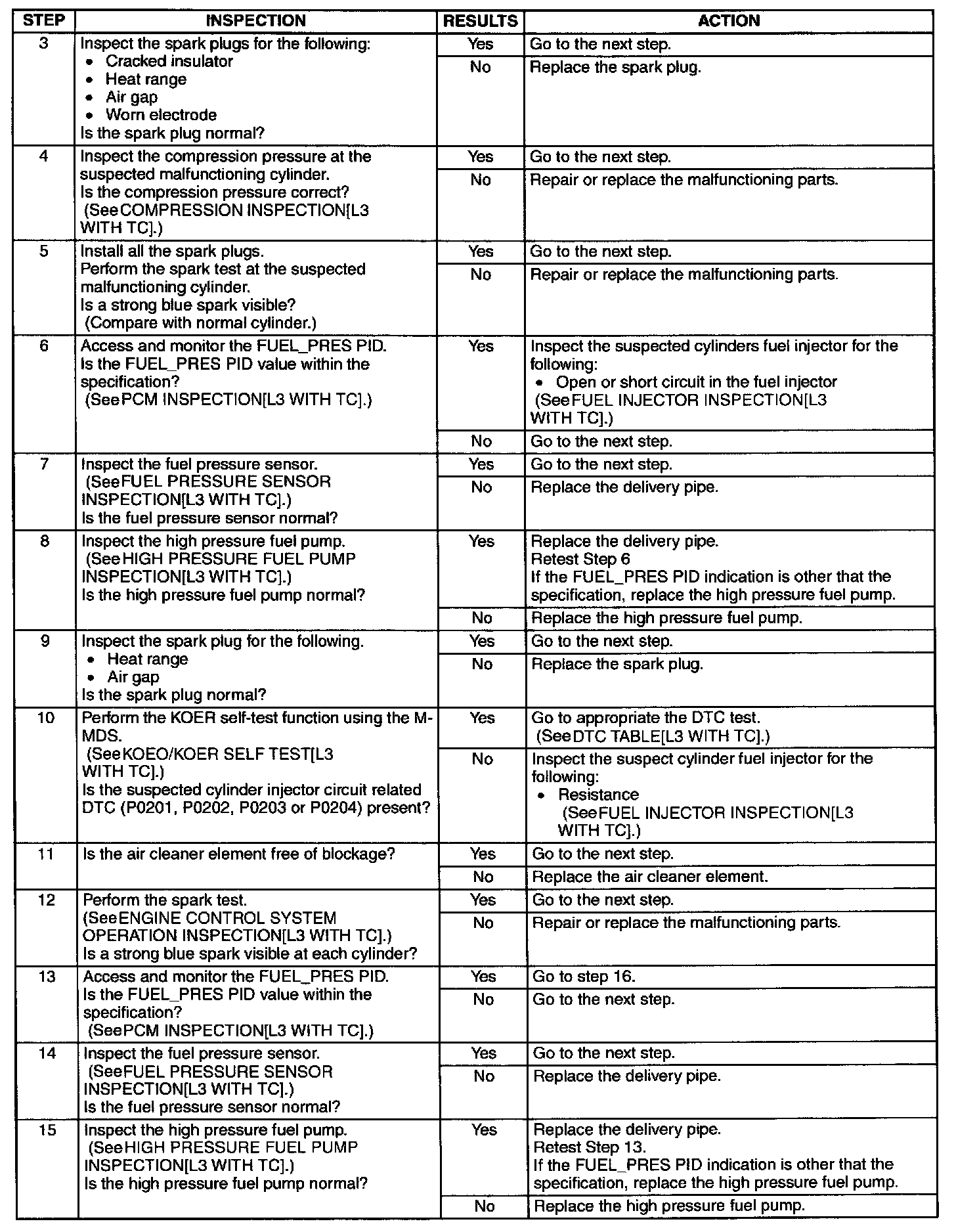

Step 3-Step 15:

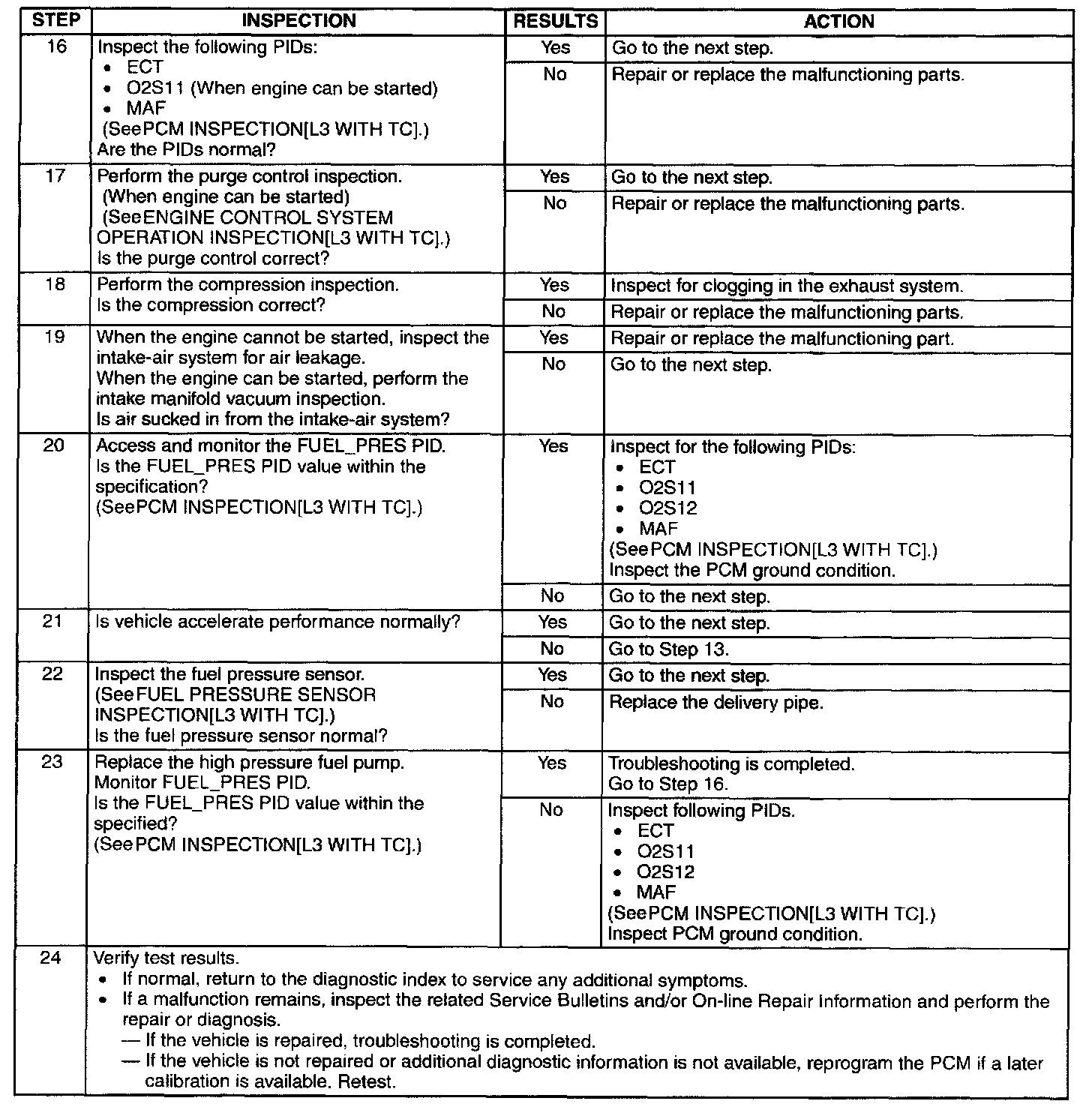

Step 16-Step 24:
