Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as indicated in the table, replace the power outer mirror switch.
      Fig 1: Continuity Reference Table
      G04861073Courtesy of MAZDA MOTORS CORP.

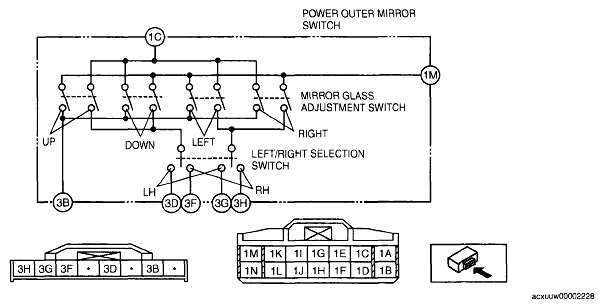

      Fig 2: Identifying Power Outer Mirror Switch Terminals
      G04861074Courtesy of MAZDA MOTORS CORP.
