Rear Side

  1. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  2. When inspecting the rear, turn the power-cut switch UNLOCK.
  3. Inspect for continuity between the power window main switch terminals.
    • If not as specified, replace the power window main switch.

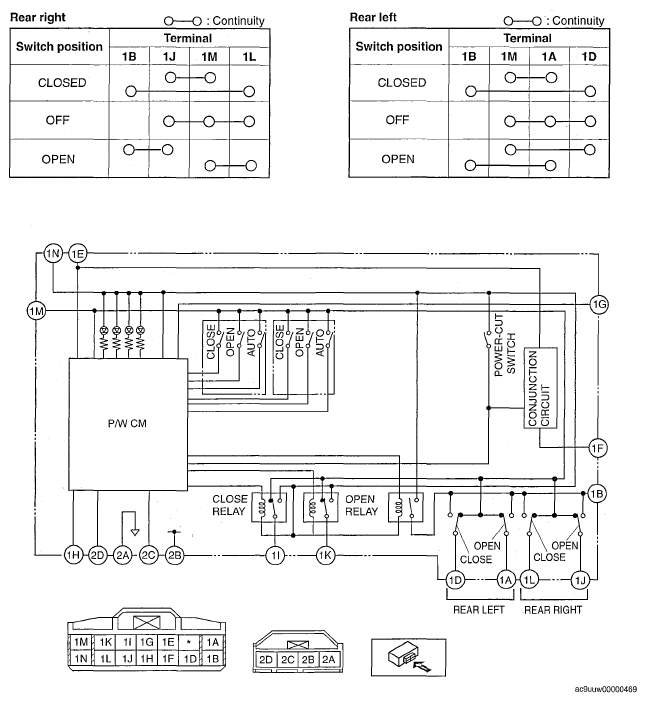

    Fig 1: Power Window Main Switch Circuit Diagram, Continuity Charts And Connector Terminals
    G04971120Courtesy of MAZDA MOTORS CORP.
