DTC P0010: Notes
DTC P0010 DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0010 |
CMP actuator circuit open (RH) |
| DETECTION CONDITION |
- The PCM monitors the OCV (RH) circuit to the PCM for high and low voltage. The test fails if the voltage exceeds or falls below a calibrated limit for a calibrated amount of time.
|
| POSSIBLE CAUSE |
- OCV (RH) malfunction
- Connector or terminal malfunction

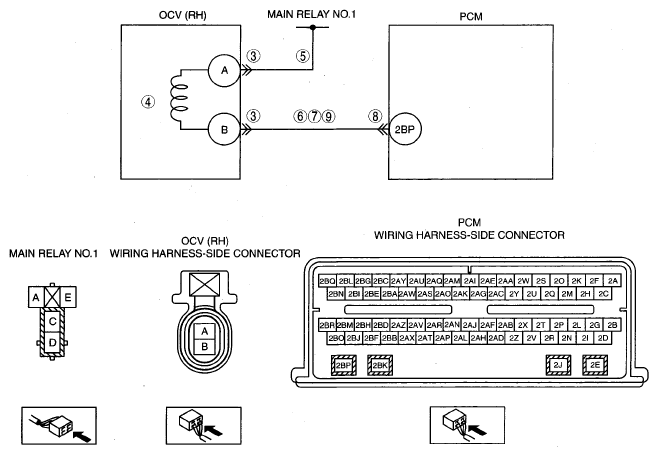

- Open circuit between OCV (RH) terminal A and main relay No.1 terminal D
- Open circuit between OCV (RH) terminal B and PCM terminal 2BP
- Short to ground circuit between OCV (RH) terminal B and PCM terminal 2BP
- Short to power supply between OCV (RH) terminal B and PCM terminal 2BP
|
 Courtesy of MAZDA MOTORS CORP.
|
