DTC P0102: Notes

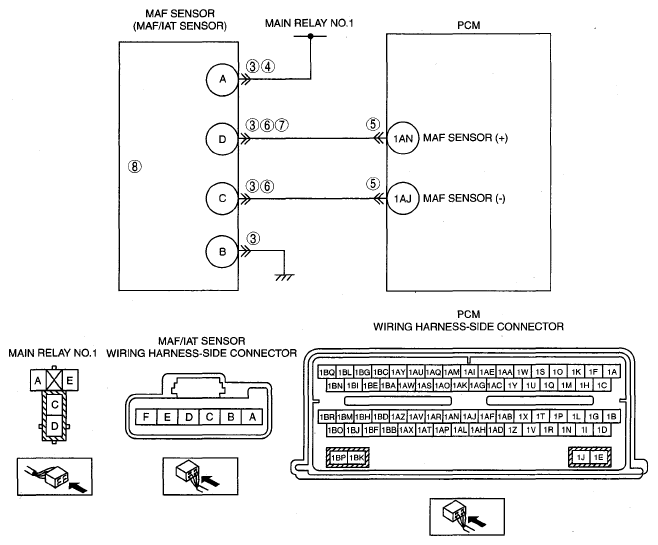

DTC P0102 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0102 |
MAF circuit low input |
| DETECTION CONDITION |
- The MAF sensor circuit is monitored by the PCM for low air flow (or voltage) input through the CCM. If during KOER the air flow (or voltage) changes below a minimum calibrated limit, the test fails.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit wiring harness between MAF sensor terminal A and main relay No.1 terminal D
- Open circuit wiring harness between MAF sensor terminal C and PCM terminal 1AJ
- Open circuit wiring harness between MAF sensor terminal D and PCM terminal 1AN
- Open circuit wiring harness between MAF sensor terminal B and body ground
- Short to ground circuit between MAF sensor terminal D and PCM terminal 1AN
- Intake air leak (near the MAF sensor)
- A closed throttle indication
- MAF sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
