DTC P0104: Notes
DTC P0104 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0104 |
MAF circuit intermittent/erratic |
| DETECTION CONDITION |
- A concern exists in the MAF sensor circuit, or the air tube containing the sensor, causing an incorrect air flow reading.
|
| POSSIBLE CAUSE |
- Air leaks in the tube from the MAF to the throttle body

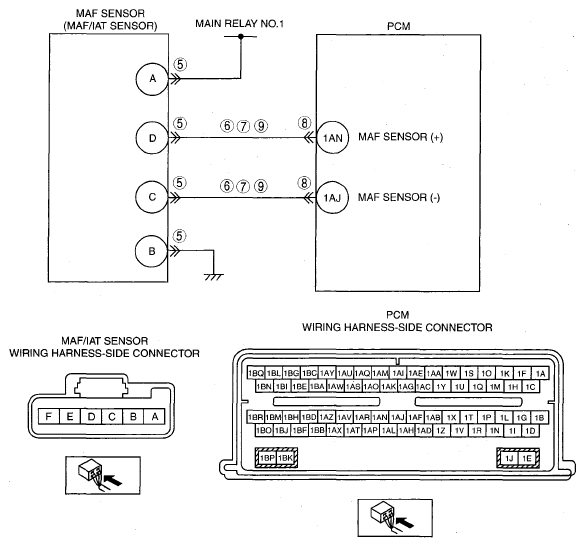

- Open circuit wiring harness between MAF sensor terminal C and PCM terminal 1AJ
- Open circuit wiring harness between MAF sensor terminal D and PCM terminal 1AN
- Short to power supply in wiring harness between MAF sensor terminal C and PCM terminal 1AJ
- Short to power supply in wiring harness between MAF sensor terminal D and PCM terminal 1AN
- Short to ground circuit between MAF sensor terminal C and PCM terminal 1AJ
- Short to ground circuit between MAF sensor terminal D and PCM terminal 1AN
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
