DTC P0113: Notes
DTC P0113 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0113 |
IAT sensor circuit high input |
| DETECTION CONDITION |
- Indicates the sensor signal is more than the self-test maximum. The IAT sensor maximum is 4.6 V or -50 °C {-58 °F}.
|
| POSSIBLE CAUSE |

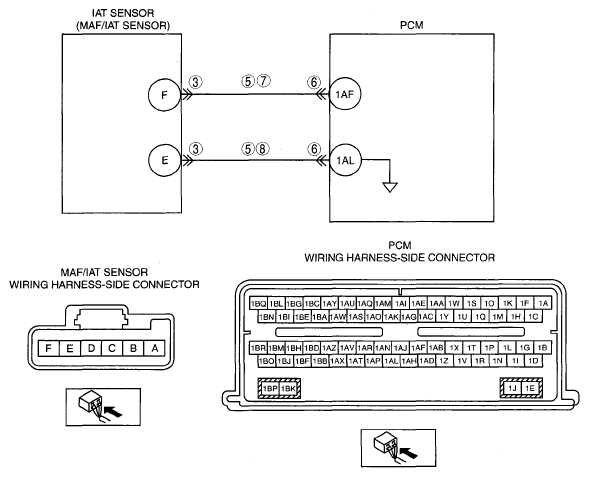

- Open circuit between MAF/IAT sensor terminal E and PCM terminal 1AL
- Open circuit between MAF/IAT sensor terminal F and PCM terminal 1AF
- Short to power supply between MAF/IAT sensor terminal F and PCM terminal 1AF
- IAT sensor malfunction
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
