DTC P0122: Notes
DTC P0122 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0122 |
TP sensor No.1 circuit low input |
| DETECTION CONDITION |
- The TP sensor No. 1 circuit was flagged as a concern by the PCM indicating a low voltage or open circuit.
|
| POSSIBLE CAUSE |
- TP sensor No. 1 malfunction
- Connector or terminal malfunction

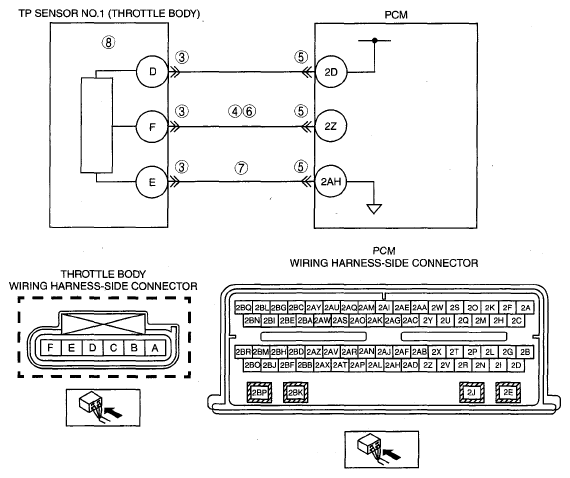

- Open circuit between throttle body terminal F and PCM terminal 2Z
- Short to ground circuit between throttle body terminal F and PCM terminal 2Z
- Open circuit between throttle body terminal E and PCM terminal 2AH
|
 Courtesy of MAZDA MOTORS CORP.
|
