DTC P0201: Notes
DTC P0201 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0201 |
Injector circuit/open-cylinder No.1 |
| DETECTION CONDITION |
- The CCM monitors the operation of the fuel injector drivers in the PCM. The test fails if the fuel injector circuitry is inoperative.
|
| POSSIBLE CAUSE |
- Fuel injector No.1 malfunction
- Connector or terminal malfunction

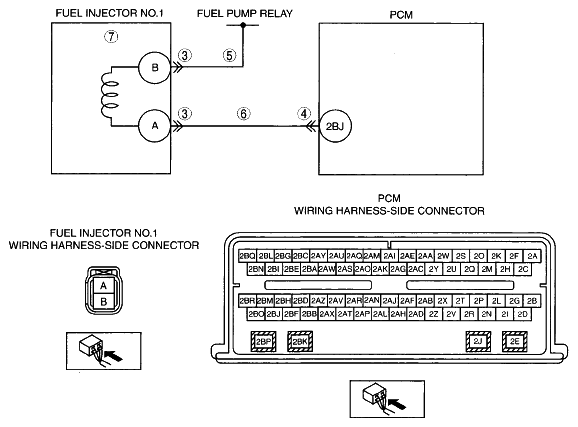

- Open circuit between fuel pump relay and fuel injector No.1 terminal B
- Open circuit between fuel injector No.1 terminal A and PCM terminal 2BJ
|
 Courtesy of MAZDA MOTORS CORP.
|
