DTC P0203: Notes
DTC P0203 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0203 |
Injector circuit/open-cylinder No.3 |
| DETECTION CONDITION |
- The CCM monitors the operation of the fuel injector drivers in the PCM. The test fails if the fuel injector circuitry is inoperative.
|
| POSSIBLE CAUSE |
- Fuel injector No.3 malfunction
- Connector or terminal malfunction

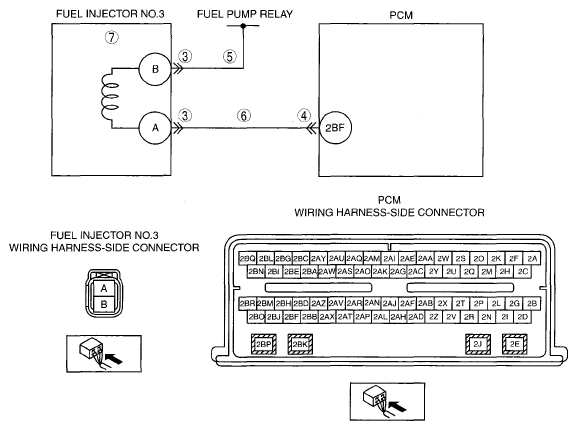

- Open circuit between fuel pump relay and fuel injector No.3 terminal B
- Open circuit between fuel injector No.3 terminal A and PCM terminal 2BF
|
 Courtesy of MAZDA MOTORS CORP.
|
