DTC P0204: Notes
DTC P0204 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0204 |
Injector circuit/open-cylinder No.4 |
| DETECTION CONDITION |
- The CCM monitors the operation of the fuel injector drivers in the PCM. The test fails if the fuel injector circuitry is inoperative.
|
| POSSIBLE CAUSE |
- Fuel injector No.4 malfunction
- Connector or terminal malfunction

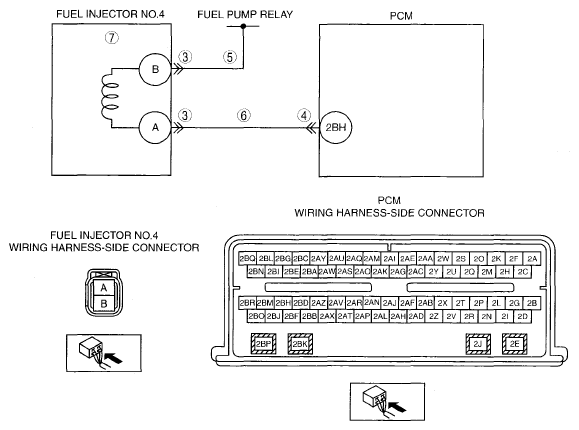

- Open circuit between fuel pump relay and fuel injector No.4 terminal B
- Open circuit between fuel injector No.4 terminal A and PCM terminal 2BH
|
 Courtesy of MAZDA MOTORS CORP.
|
