DTC P0222: Notes

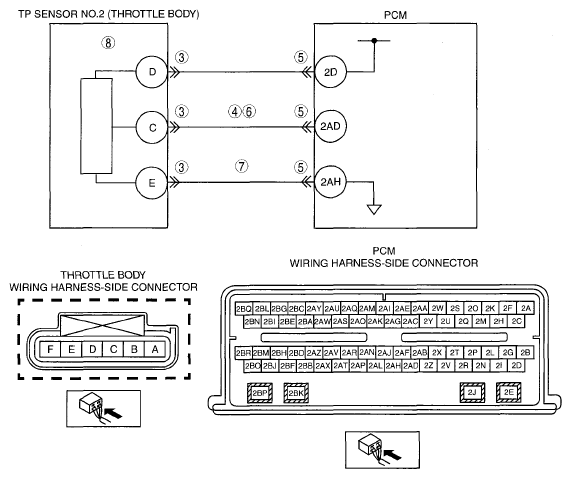

DTC P0222 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0222 |
TP sensor No.2 circuit low input |
| DETECTION CONDITION |
- The TP sensor No.2 circuit was flagged as a concern by the PCM indicating a low voltage or open circuit.
|
| POSSIBLE CAUSE |
- TP sensor No.2 malfunction
- Connector or terminal malfunction
- Open circuit between throttle body terminal C and PCM terminal 2AD
- Short to ground circuit between throttle body terminal C and PCM terminal 2AD
- Open circuit between throttle body terminal E and PCM terminal 2AH
|
 Courtesy of MAZDA MOTORS CORP.
|
