DTC P0231: Notes
DTC P0231 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0231 |
FP secondary circuit low |
| DETECTION CONDITION |

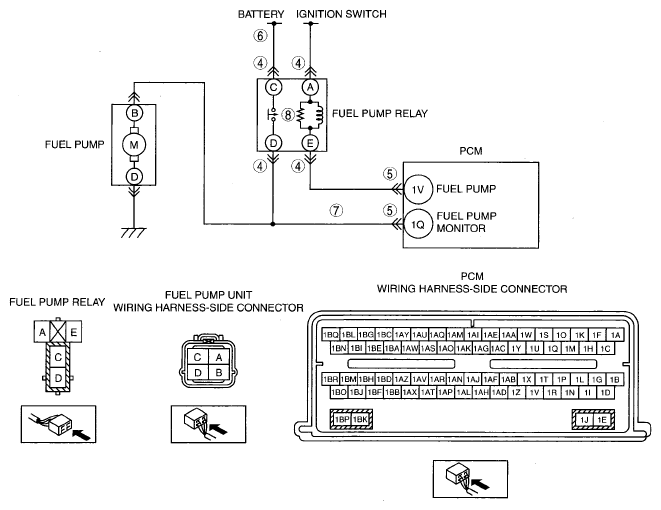

- The PCM monitors the fuel pump monitor circuit. The test fails if the PCM commands the fuel pump ON and B+ voltage is not detected on the FPM circuit.
|
| POSSIBLE CAUSE |
- Fuel pump relay malfunction
- Connector or terminal malfunction
- Open circuit between battery and fuel pump relay terminal C
- Open circuit between fuel pump relay terminal D and PCM terminal 1Q
|
 Courtesy of MAZDA MOTORS CORP.
|
