DTC P0320: Notes

DTC P0320 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0320 Ignition/distributor engine speed input circuit
DETECTION CONDITION
  • The ignition engine speed sensor input signal to the PCM is continuously monitored.
  • The test fails when the signal indicates that 2 successive erratic PIP pulses occurred.
POSSIBLE CAUSE
  • Loose wires/connectors.
  • Arcing secondary ignition components (coil, wires or plugs).
  • On-board transmitter (2-way radio).

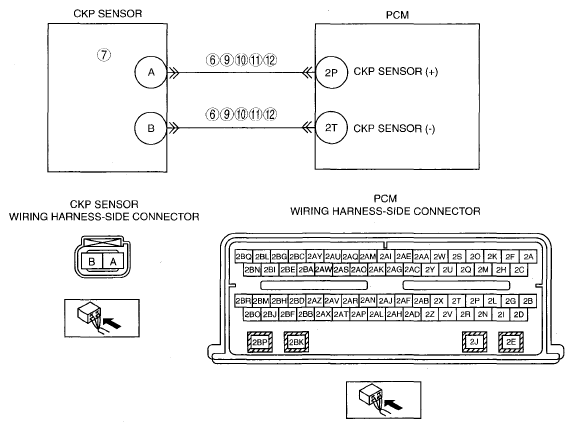

G04969278Courtesy of MAZDA MOTORS CORP.
