DTC P0330: Notes
DTC P0330 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0330 |
KS circuit (LH) |
| DETECTION CONDITION |
- The KS detects vibrations upon increase and decrease in engine RPM. The KS generates a voltage based on this vibration. A DTC is set if the voltage goes outside a calibrated level.
|
| POSSIBLE CAUSE |

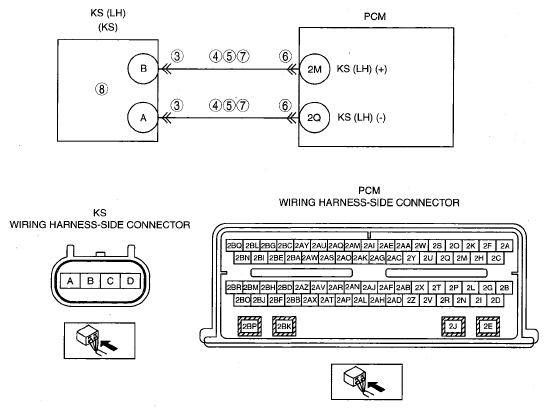

- Open circuit wiring harness between KS terminal A and PCM terminal 2Q
- Short to power supply in wiring harness between KS terminal A and PCM terminal 2Q
- Short to ground circuit between KS terminal A and PCM terminal 2Q
- Open circuit wiring harness between KS terminal B and PCM terminal 2M
- Short to power supply in wiring harness between KS terminal B and PCM terminal 2M
- Short to ground circuit between KS terminal B and PCM terminal 2M
- Connector or terminal malfunction
- KS malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
