DTC P0340: Notes
DTC P0340 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0340 |

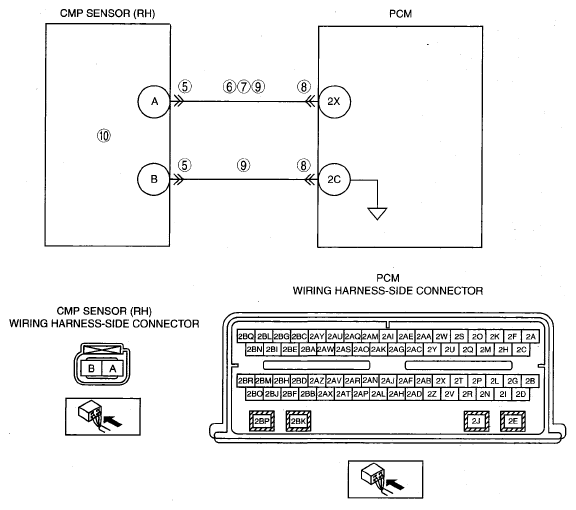

CMP sensor (RH) circuit |
| DETECTION CONDITION |
- The test fails when the PCM can no longer detect the signal from the CMP sensor (RH).
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- CMP sensor (RH) malfunction
- Short to ground circuit between CMP sensor (RH) terminal A and PCM terminal 2X
- Short to power supply between CMP sensor (RH) terminal A and PCM terminal 2X
- Open circuit between CMP sensor (RH) terminal A and PCM terminal 2X
- Open circuit between CMP sensor (RH) terminal B and PCM terminal 2C
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
