DTC P0349: Notes

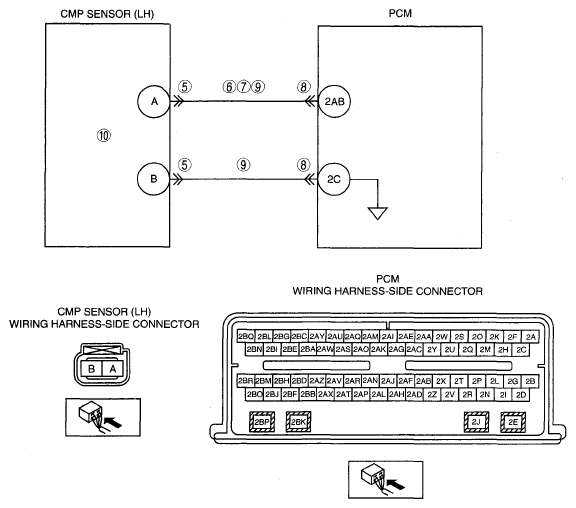

DTC P0349 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0349 |
CMP sensor (LH) circuit intermittent |
| DETECTION CONDITION |
- The test fails when the PCM detects an intermittent signal from the CMP sensor (LH).
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- CMP sensor (LH) malfunction
- Sensor shielding malfunction
- Short to ground circuit between CMP sensor (LH) terminal A and PCM terminal 2AB
- Short to power supply between CMP sensor (LH) terminal A and PCM terminal 2AB
- Open circuit between CMP sensor (LH) terminal A and PCM terminal 2AB
- Open circuit between CMP sensor (LH) terminal B and PCM terminal 2C
|
 Courtesy of MAZDA MOTORS CORP.
|
