DTC P0443: Notes
DTC P0443 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0443 |
Purge solenoid valve circuit |
| DETECTION CONDITION |
- The PCM monitors the state of the purge solenoid valve circuit output driver. The test fails when the signal moves outside the minimum or maximum limit for the commanded state.
|
| POSSIBLE CAUSE |

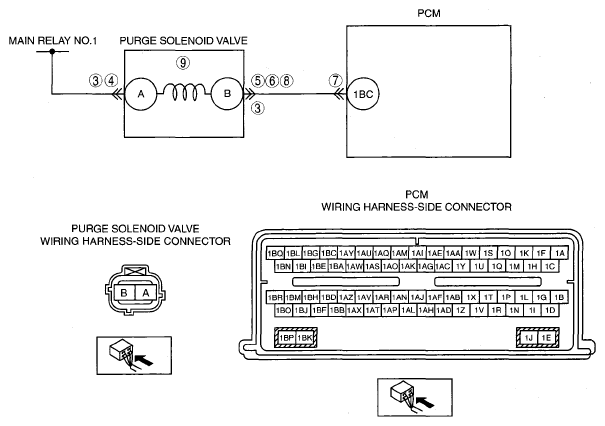

- Purge solenoid valve malfunction
- Connector or terminal malfunction
- Short to ground between purge solenoid valve terminal B and PCM terminal 1BC
- Open circuit between main relay No.1 terminal D and purge solenoid valve terminal A
- Short to power supply between purge solenoid valve terminal B and PCM terminal 1BC
- Open circuit between purge solenoid valve terminal B and PCM terminal 1BC
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
