DTC P0453: Notes

DTC P0453 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0453 Fuel tank pressure sensor high input
DETECTION CONDITION
  • The PCM monitors the evaporative emission (EVAP) control system fuel tank pressure sensor input signal to the PCM. The test fails when the signal average jumps above a minimum allowable calibrated parameter.
POSSIBLE CAUSE
  • Fuel tank pressure sensor malfunction
  • Connector or terminal malfunction
  • Open circuit between fuel tank pressure sensor terminal A and PCM terminal 1AB
  • Open circuit between fuel tank pressure sensor terminal B and PCM terminal 1 AL
  • Short to the constant voltage supply circuit between fuel tank pressure sensor terminal A and PCM terminal 1AB
  • Short to power supply between fuel tank pressure sensor terminal C and PCM terminal 1 U
  • Fuel tank pressure sensor power circuit and signal circuit are shorted each other

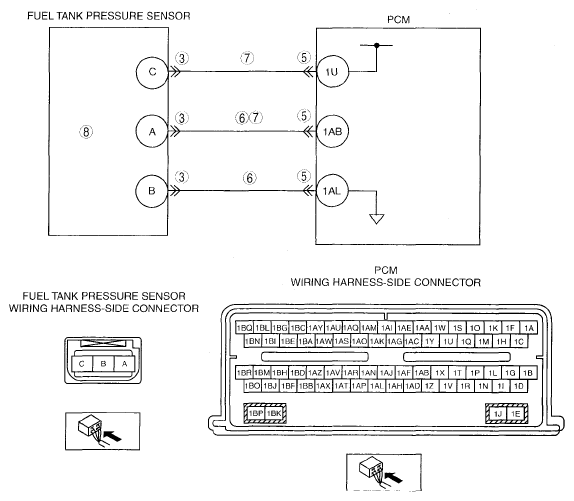

G04969289Courtesy of MAZDA MOTORS CORP.
