DTC P0579: Notes

DTC P0579 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0579 Cruise control multi-function input circuit range/performance
DETECTION CONDITION
  • P0579 may set when the cruise control switch circuits are open, shorted to voltage or ground.
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Open circuit between cruise control switch terminal B and PCM terminal 1AT
  • Open circuit between cruise control switch terminal C and PCM terminal 1 AP
  • Short to power supply between cruise control switch terminal B and PCM terminal 1AT
  • Short to power supply between cruise control switch terminal C and PCM terminal 1AP
  • Short to ground circuit between cruise control switch terminal B and PCM terminal 1AT
  • Short to ground circuit between cruise control switch terminal C and PCM terminal 1AP
  • Cruise control switch malfunction
  • PCM malfunction

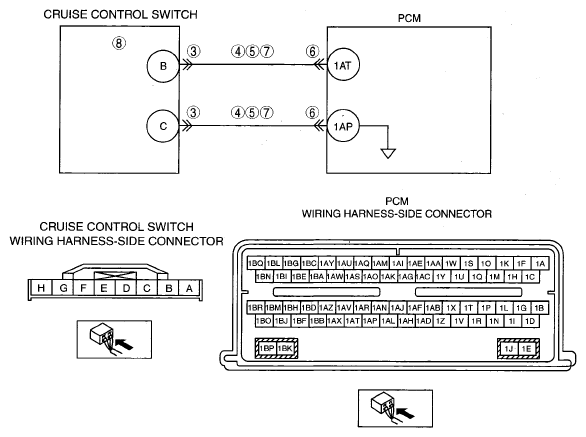

G04969292Courtesy of MAZDA MOTORS CORP.
