DTC P0581: Notes
DTC P0581 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0581 |
Cruise control multi-function input circuit high |
| DETECTION CONDITION |
- P0581 sets when the cruise control switch circuits are shorted to voltage or open.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

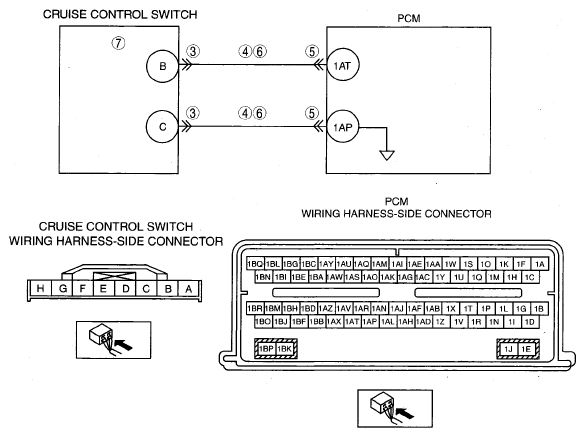

- Open circuit between cruise control switch terminal B and PCM terminal 1AT
- Open circuit between cruise control switch terminal C and PCM terminal 1AP
- Short to power supply between cruise control switch terminal B and PCM terminal 1 AT
- Short to power supply between cruise control switch terminal C and PCM terminal 1 AP
- Cruise control switch malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
