DTC P0626: Notes
DTC P0626 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0626 |
Generator field terminal circuit high |
| DETECTION CONDITION |
- The PCM monitors generator load from the generator/regulator in the form of frequency. The concern indicates the input is higher than the load should be in normal operation. The load input could be high when a battery short to ground exists.
|
| POSSIBLE CAUSE |

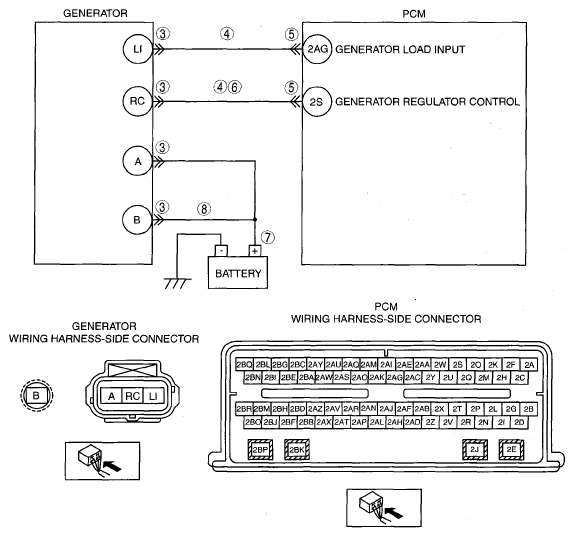

- Open circuit in wiring harness between generator terminal RC and PCM terminal 2S
- Short to power supply between generator terminal RC and PCM terminal 2S
- Short to power supply between generator terminal LI and PCM terminal 2AG
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
