DTC P0643: Notes

DTC P0643 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0643 Sensor reference voltage circuit high
DETECTION CONDITION
  • Indicates the reference voltage circuit is higher than reference voltage maximum.
POSSIBLE CAUSE
  • Short to ground between fuel tank pressure sensor terminal C and PCM terminal 1 U
  • Fuel tank pressure sensor malfunction
  • Connector or terminal malfunction

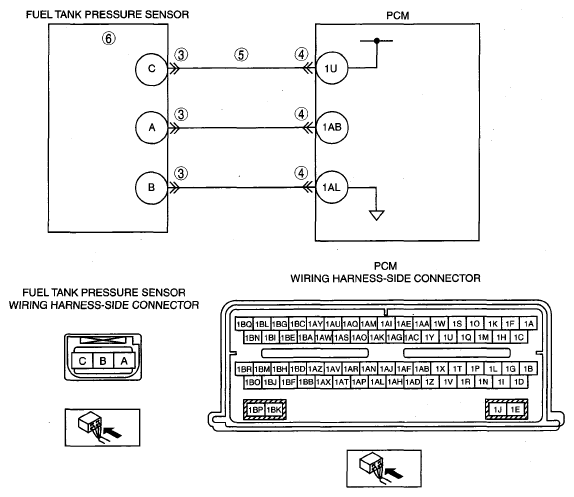

G04969299Courtesy of MAZDA MOTORS CORP.
