DTC P0645: Notes
DTC P0645 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0645 |
A/C relay control circuit |
| DETECTION CONDITION |
- Monitors the A/C relay control circuit output from the PCM. The test fails when the PCM grounds the A/C relay control circuit, excessive current draw is detected on the A/C relay control circuit; or, with the A/C relay control circuit not grounded by the PCM, voltage is not detected on the A/C relay control circuit (the PCM expects to detect vehicle power voltage coming through the A/C relay coil to the A/C circuit).
|
| POSSIBLE CAUSE |
- A/C relay malfunction
- Connector or terminal malfunction

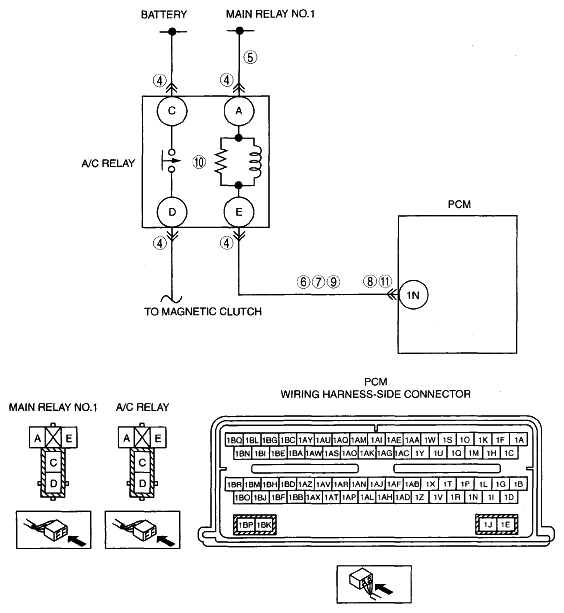

- Open circuit in wiring between main relay terminal No.1 D and A/C relay terminal A
- Open circuit in wiring between A/C relay terminal E and PCM terminal 1N
- Short to ground in wiring between A/C relay terminal E and PCM terminal 1 N
- Short to power supply between A/C relay terminal E and PCM terminal 1 N
|
 Courtesy of MAZDA MOTORS CORP.
|
