DTC P1290: Notes

DTC P1290 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P1290 CHT sensor circuit low input
DETECTION CONDITION
  • Indicates a CHT sensor circuit short to ground.
POSSIBLE CAUSE

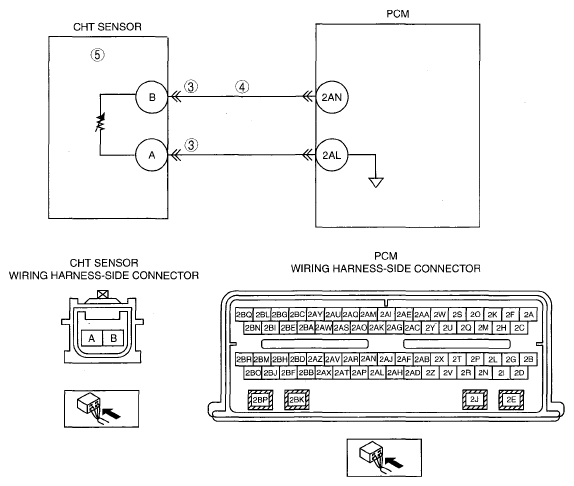

  • Short to ground in wiring harness between CHT sensor terminal B and PCM terminal 2AN
  • CHT sensor malfunction
  • Connector or terminal malfunction
G04969306Courtesy of MAZDA MOTORS CORP.
