DTC P1633: Notes

DTC P1633 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P1633 Keep alive power voltage too low
DETECTION CONDITION
  • Indicates the keep alive power circuit has experienced a voltage interrupt.
POSSIBLE CAUSE
  • Connector or terminal malfunction

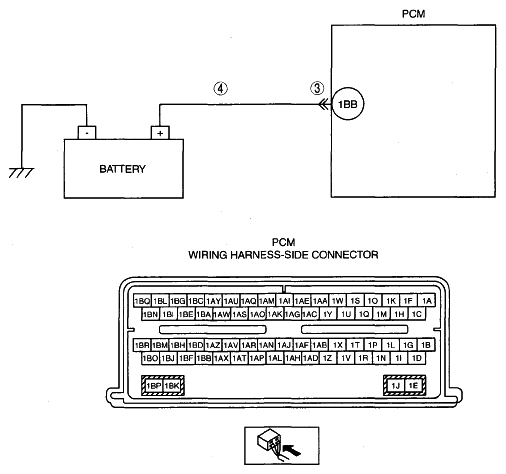

  • Open circuit between battery positive terminal and PCM terminal 1 BB
G04969308Courtesy of MAZDA MOTORS CORP.
