DTC P2100: Notes
DTC P2100 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2100 |
Throttle actuator circuit open |
| DETECTION CONDITION |
- A PCM malfunction flag is set indicating the motor circuit is open.
|
| POSSIBLE CAUSE |
- Throttle actuator malfunction
- Connector or terminal malfunction

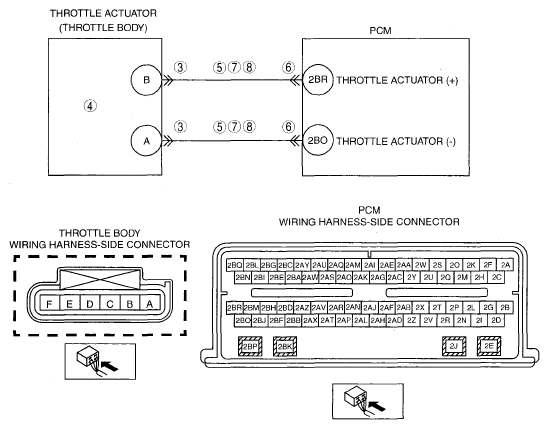

- Open circuit wiring harness between throttle body terminal A and PCM terminal 2BO
- Short to power supply in wiring harness between throttle body terminal A and PCM terminal 2BO
- Open circuit wiring harness between throttle body terminal B and PCM terminal 2BR
- Short to power supply in wiring harness between throttle body terminal B and PCM terminal 2BR
- Throttle actuator circuits are shorted each other
|
 Courtesy of MAZDA MOTORS CORP.
|
