DTC P2101: Notes
DTC P2101 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2101 |

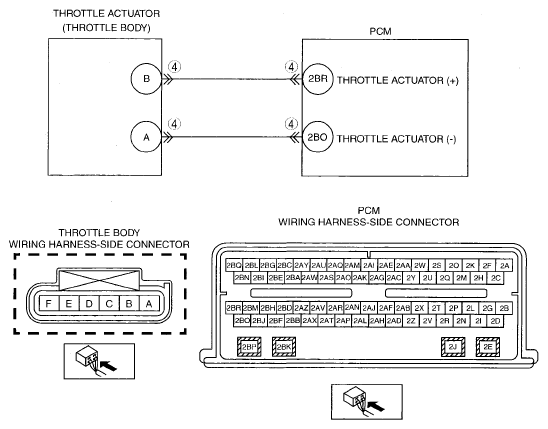

Throttle actuator circuit range/performance |
| DETECTION CONDITION |
- A PCM malfunction flag is set indicating the motor circuit is open, and may require cycling the key.
|
| POSSIBLE CAUSE |
- Throttle actuator circuit are cross-wired
|
 Courtesy of MAZDA MOTORS CORP.
|
