DTC P2107: Notes
DTC P2107 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2107 |
Throttle actuator control module processor |
| DETECTION CONDITION |
- The throttle actuator control area of the PCM failed the self-test.
|
| POSSIBLE CAUSE |
- Throttle body malfunction
- Throttle actuator control circuits are shorted each other

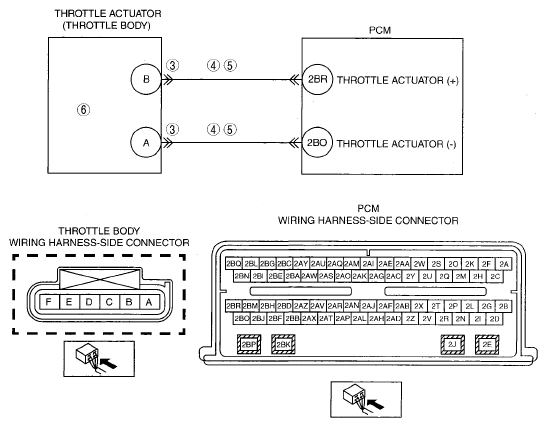

- Short to power supply between throttle actuator terminal A and PCM terminal 2BO
- Short to power supply between throttle actuator terminal B and PCM terminal 2BR
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
