DTC P2111: Notes

DTC P2111 (MZI-3.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2111 Throttle actuator control system - stuck open
DETECTION CONDITION
  • This PCM fault status indicates the throttle plate is at a more angle than commanded.
POSSIBLE CAUSE
  • Binding throttle body, stuck open
  • Throttle actuator control circuits are cross-wired
  • Throttle actuator control circuits are shorted each other
  • PCM malfunction

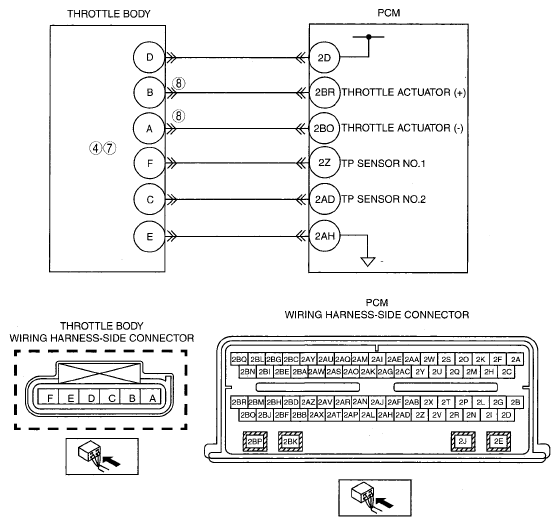

G04969314Courtesy of MAZDA MOTORS CORP.
